Model: 12HD7
100+ units in stock
Features
  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Wall, desktop

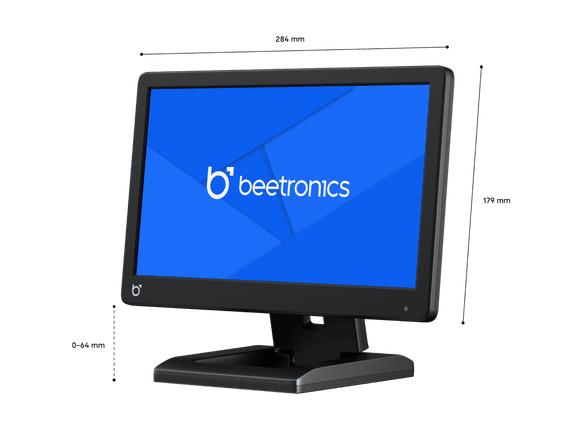

  4. External dimensions: 284 x 179 x 32 mm
Choose display type
Display type
€ 299,00
€ 367,77 VAT incl.
Order before 11:55 PM for delivery on Wednesday

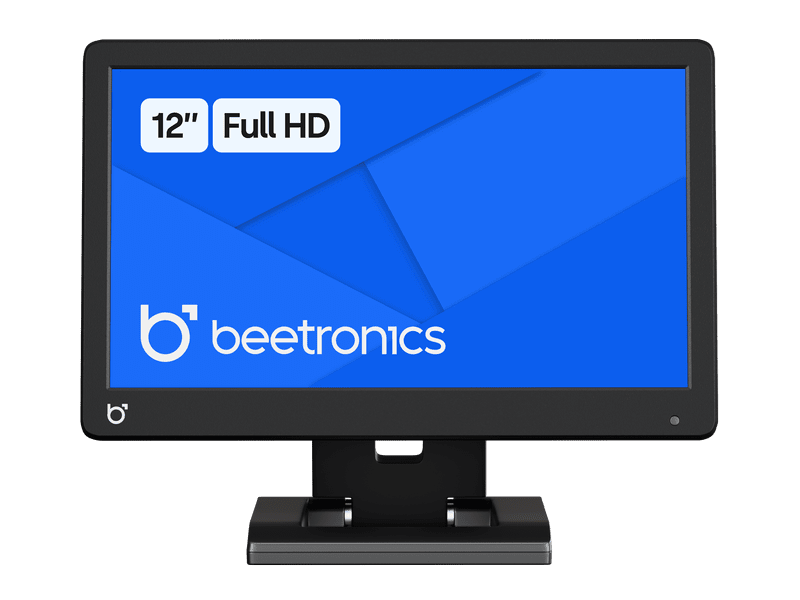

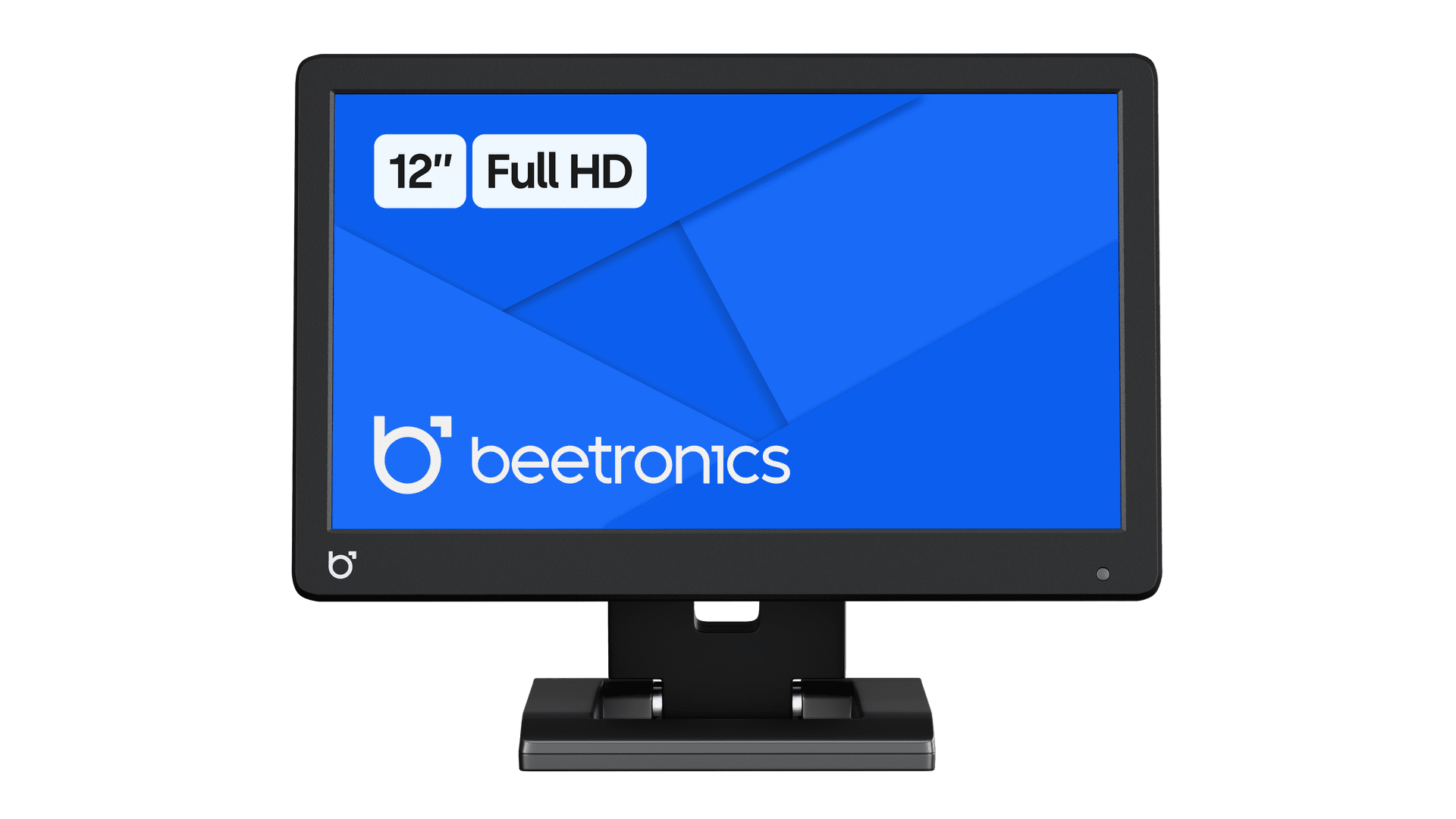

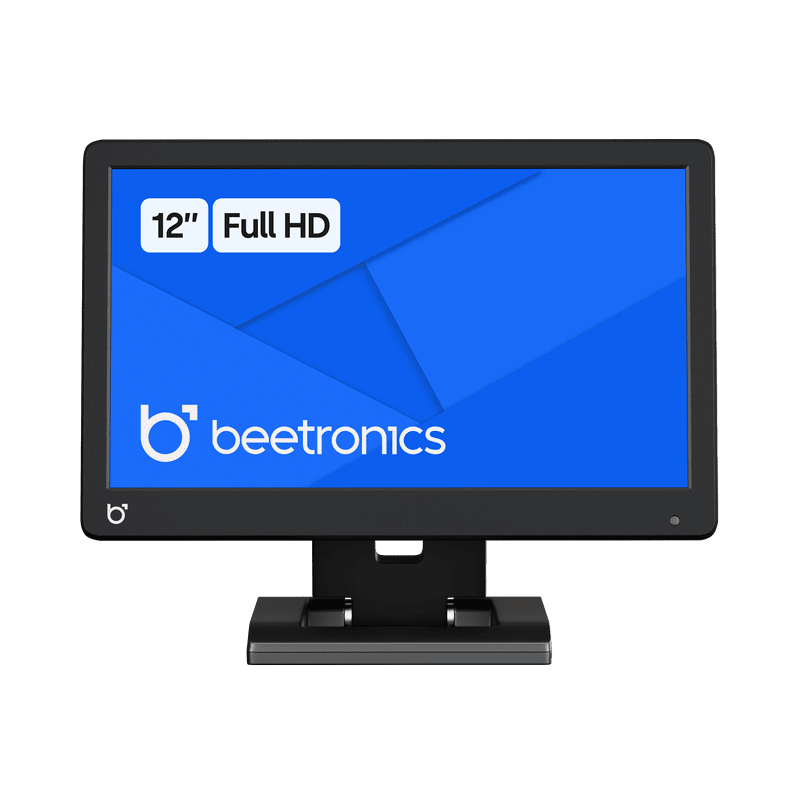

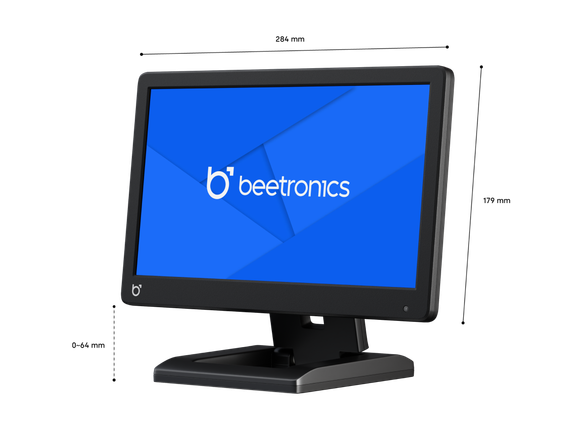

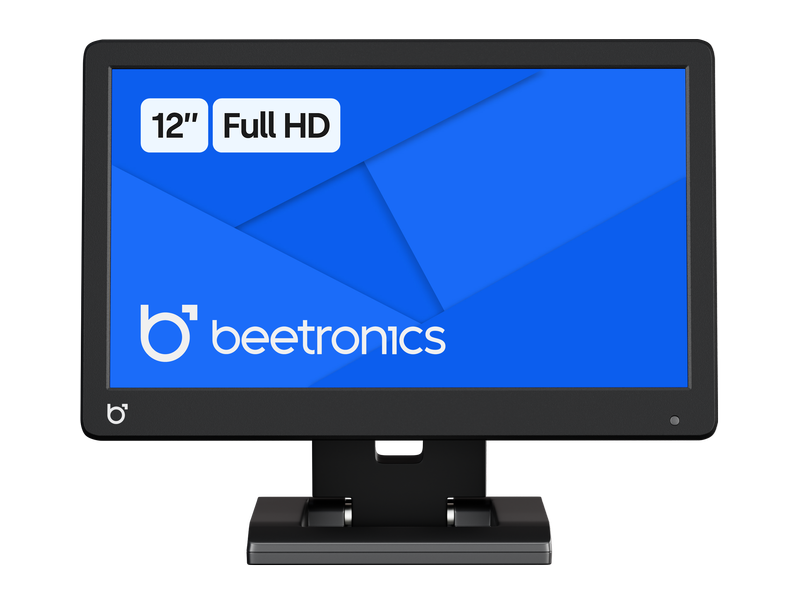

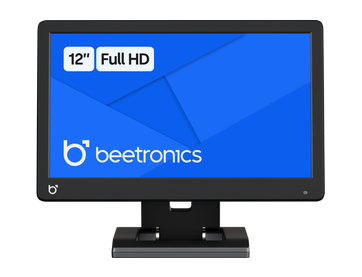

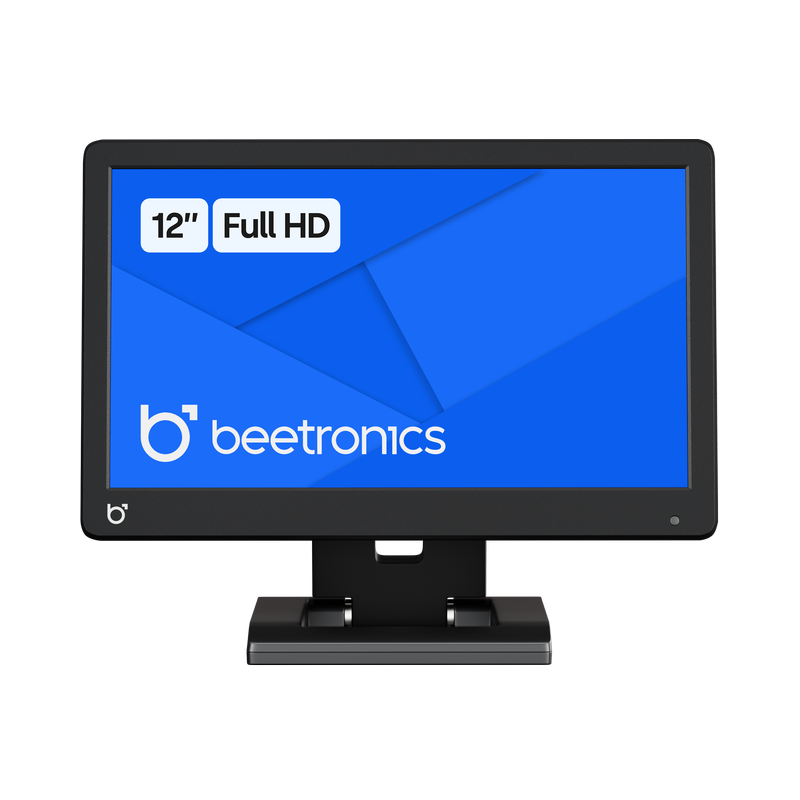

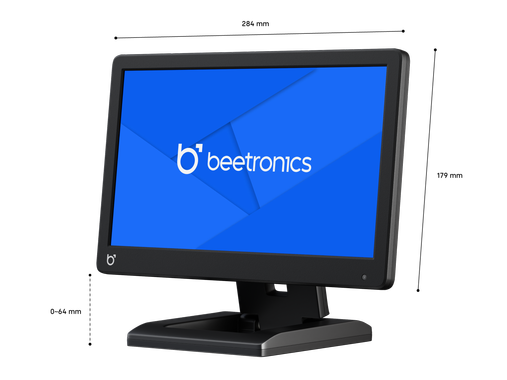

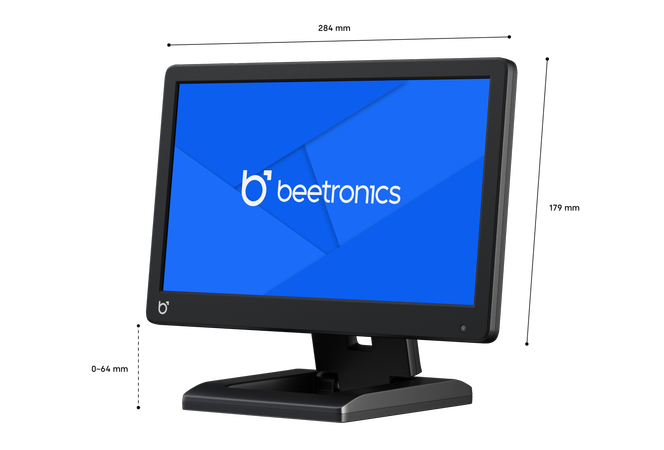

This 12 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. The 12 inch monitor has a lightweight housing and is ideal for desktop and wall mounting. The 12HD7 can be connected via HDMI, VGA, BNC or RCA connections.

Product highlights
12 inch monitor

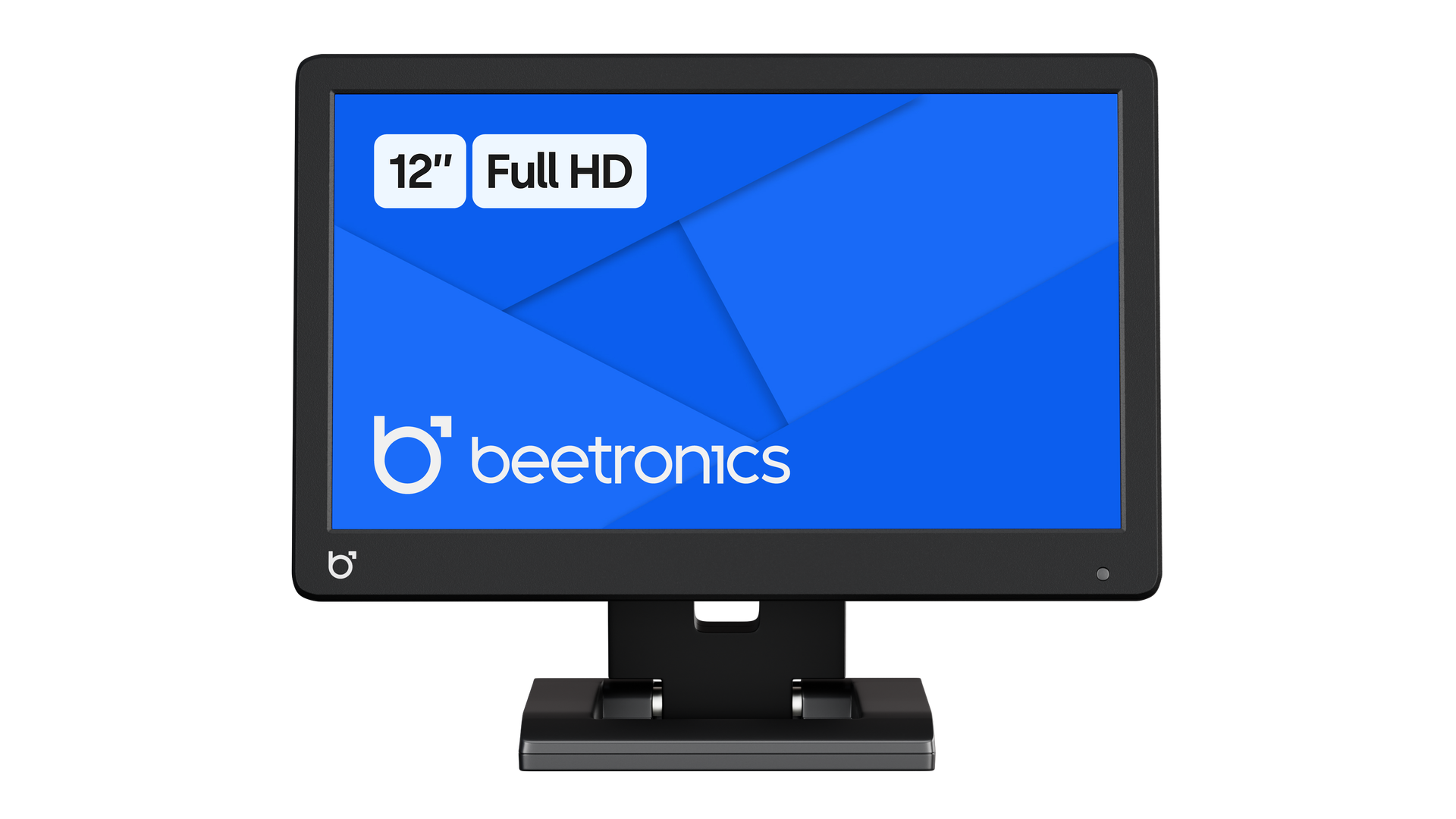

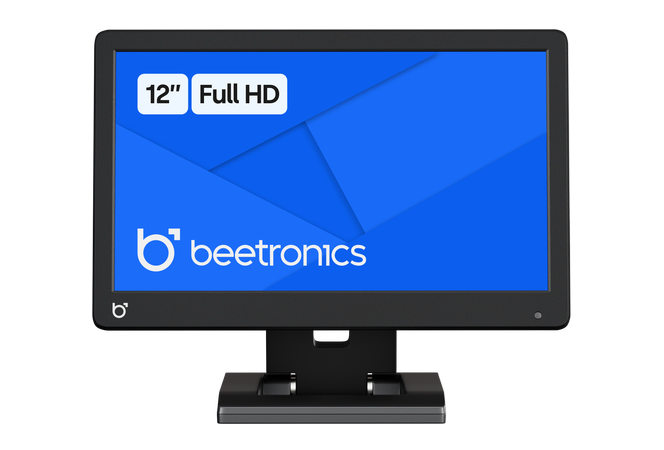

Outstanding Full HD image quality

Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

12 inch monitor

Versatile connectivity

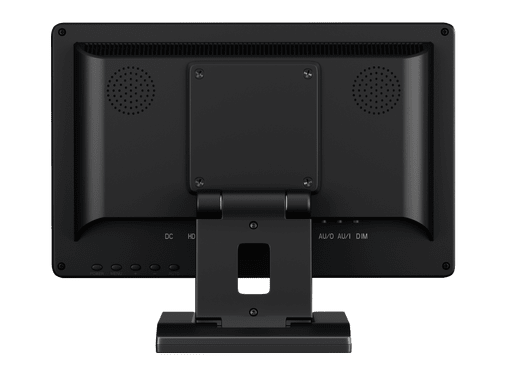

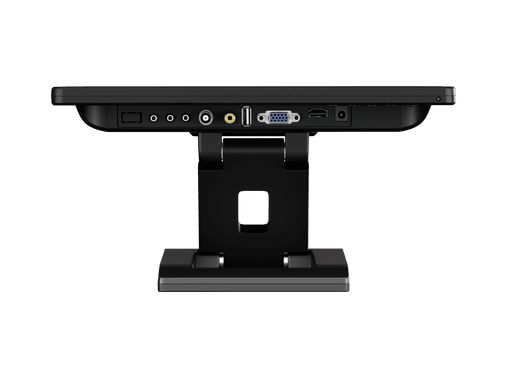

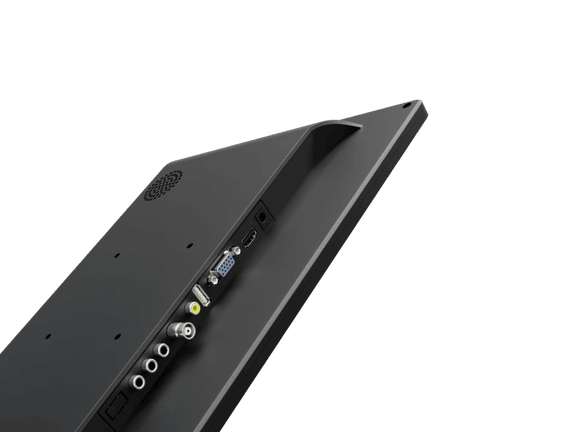

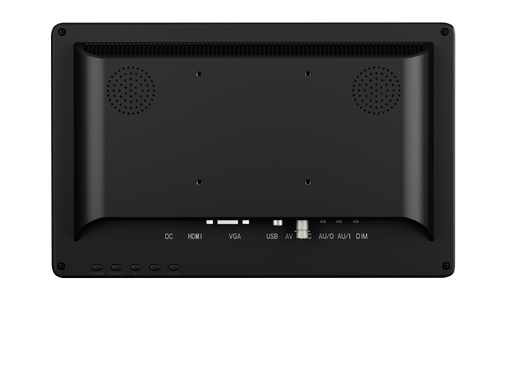

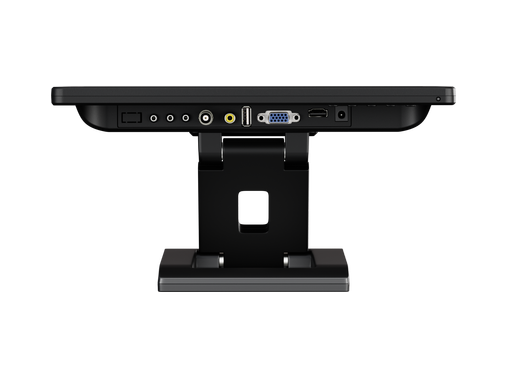

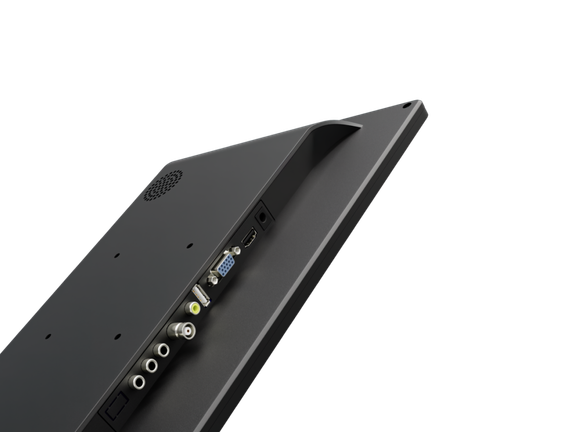

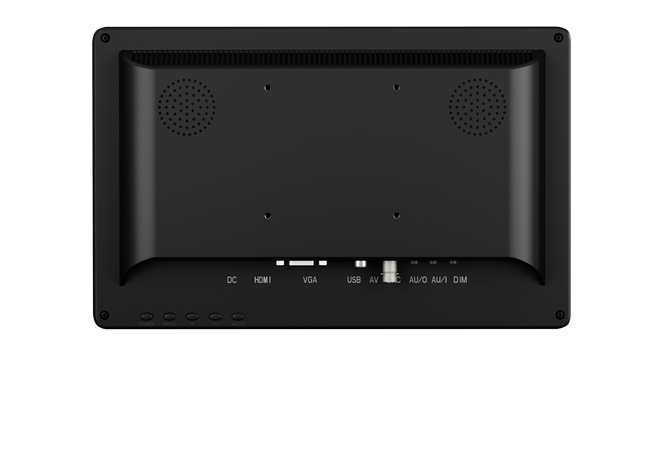

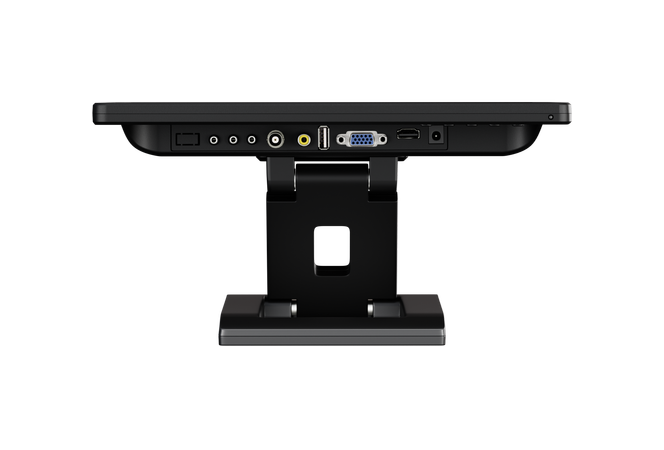

The 12HD7 has HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.

12 inch monitor

Designed for professional use

The 12HD7 is designed for continuous operation and professional use. The monitor is manufactured with high-quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 36 Volts and features a fully dimmable backlight.

12 inch monitor

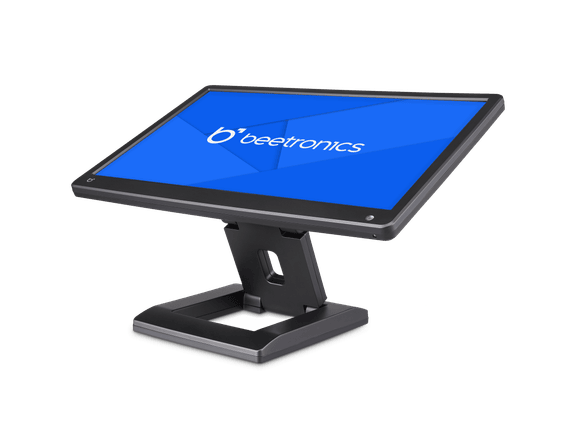

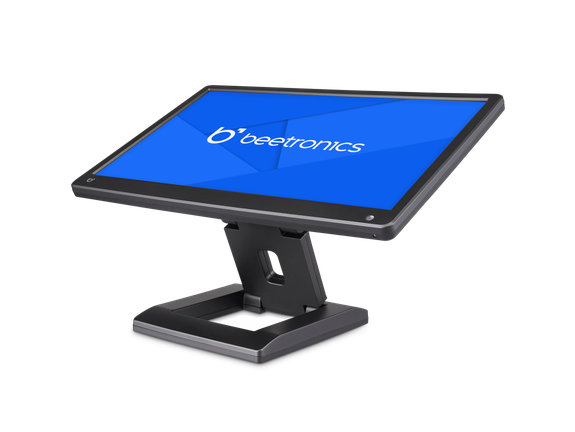

Desktop or wall mounting

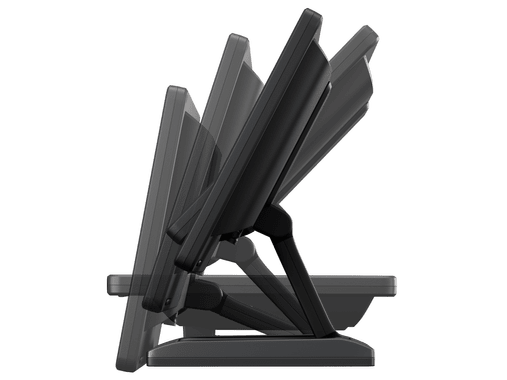

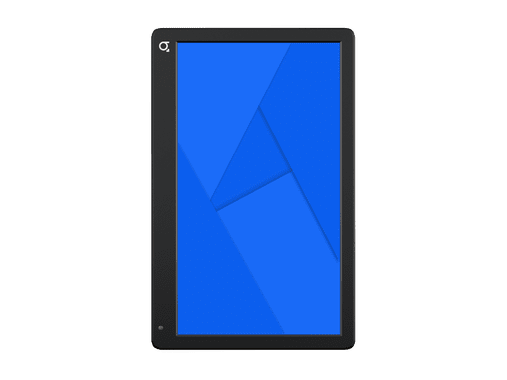

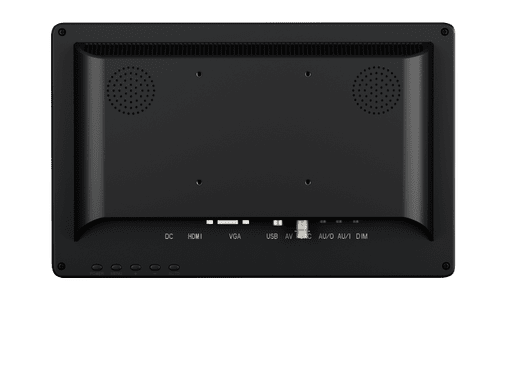

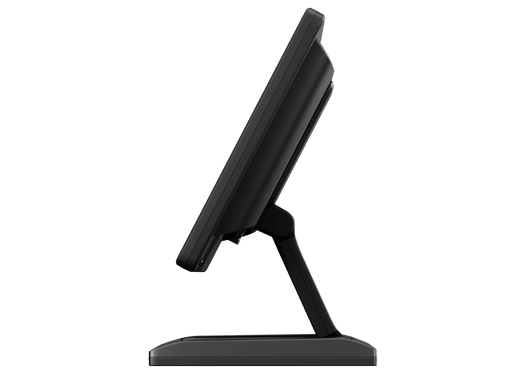

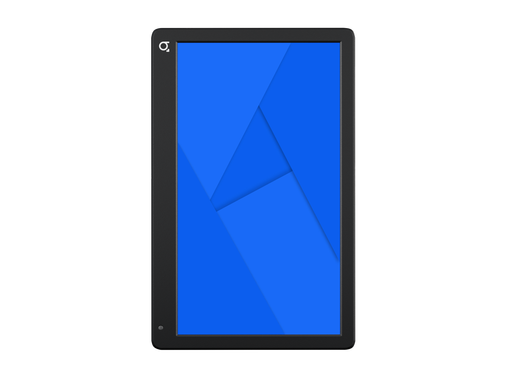

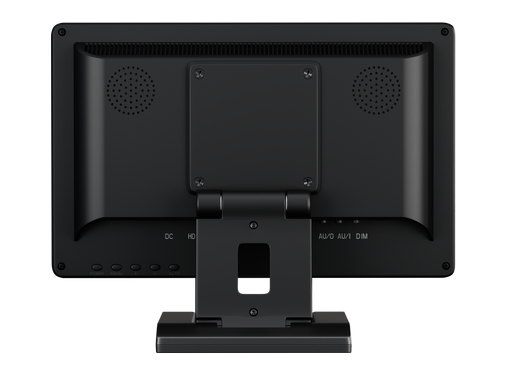

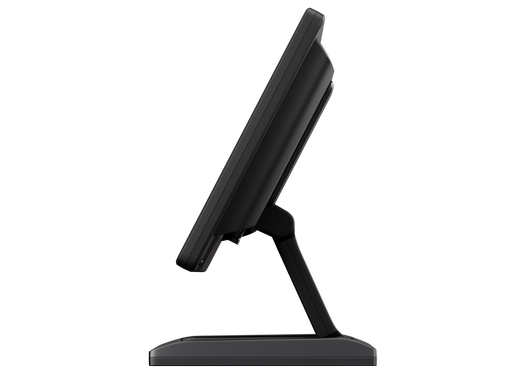

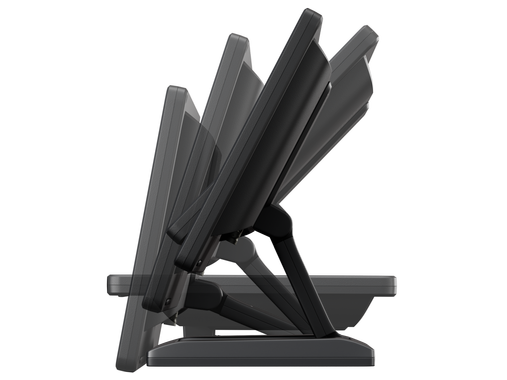

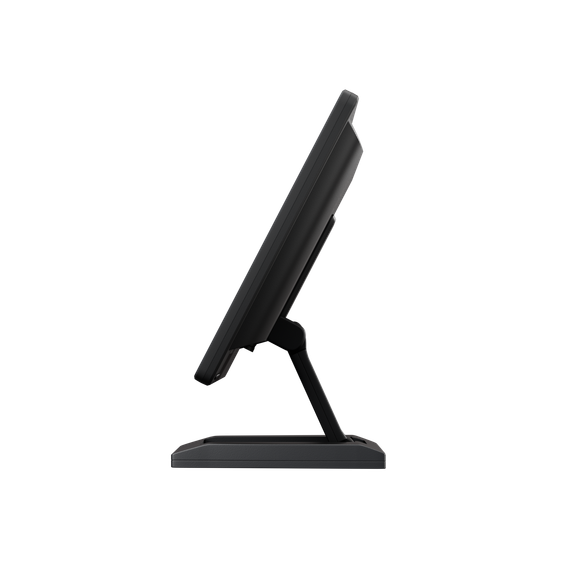

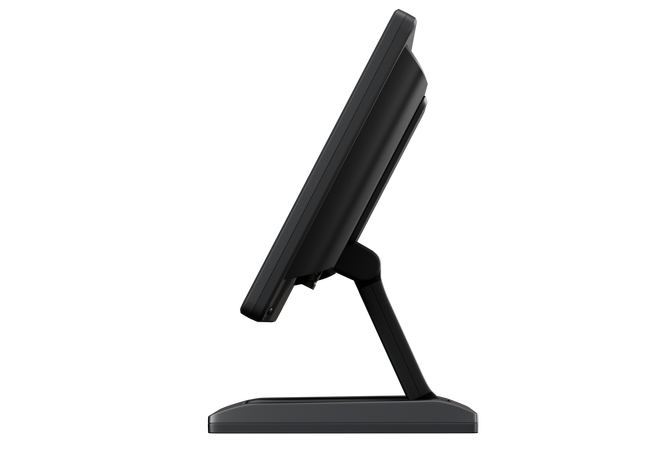

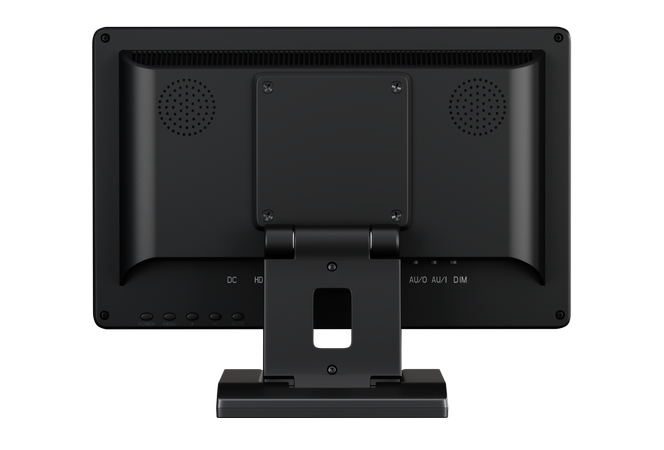

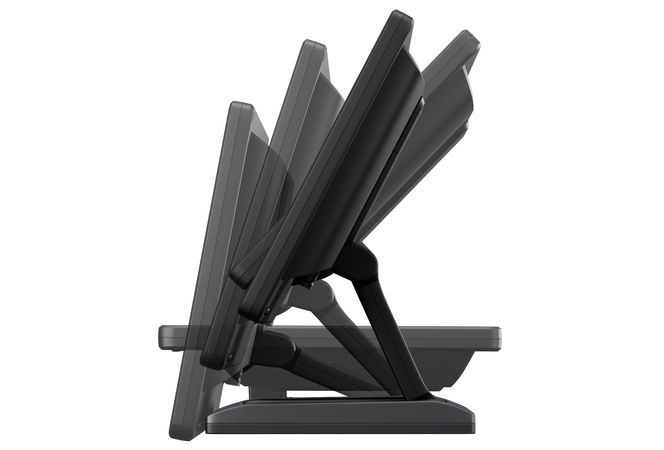

The Beetronics 12HD7 has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the monitor to a universal wall bracket, in either landscape or portrait mode.

Specifications
General
Manufacturer
Beetronics
Item number
12HD7
Product name
12 inch monitor
Warranty
2 years
Datasheet
User manual
Quickstart
Panel
11.6 inches (296 mm)
IPS-LCD
16:9 (4:3 adjustable)
10 ms
50K
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
190 PPI
LED
500 cd/m2
1000:1
PAL/NTSC/SECAM
178° horizontal, 178° vertical
Connectivity
1x
1x
1x
1x
1x integrated USB media player
1x
1x
Size & weight
Colour
Black

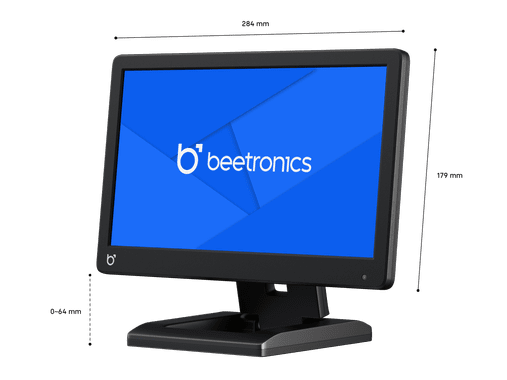

Dimensions (without stand)
284 x 179 x 32 mm
258 x 142 mm
600 grams (1000 grams with stand
Technical drawing
3D Drawing
Features and functions
Integrated speakers
Key-lock
The control buttons can be blocked
Automatically powers on when it receives current or a signal
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically

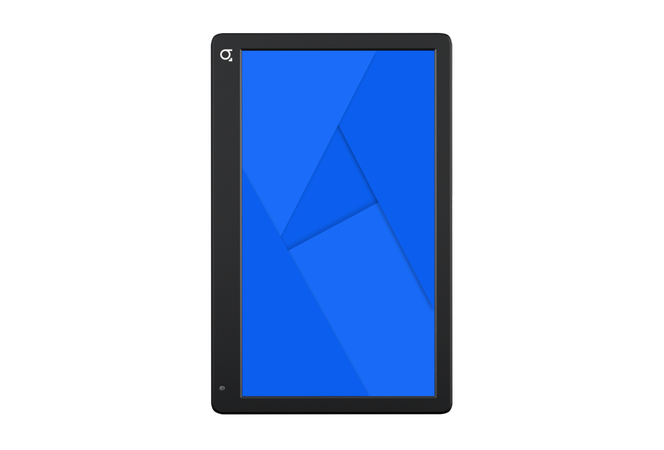

Landscape, portrait, face-up
The monitor is equipped with a built-in USB media player.
Power
DC 9-36V
Typical 10.2 W (on), 0.4 W (standby)
External DC (power adapter included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 85% non-condensing
Mounting
VESA 75x75mm
Flush mount
Possible, no accessories available
Stand
Adjustable and detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

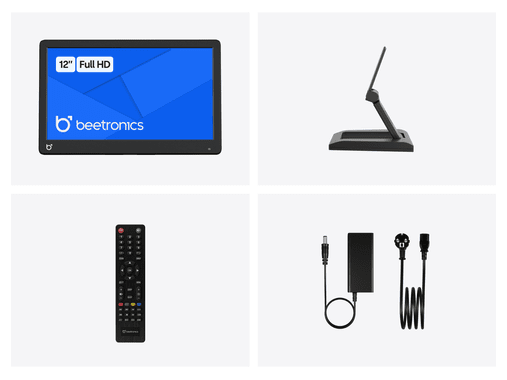

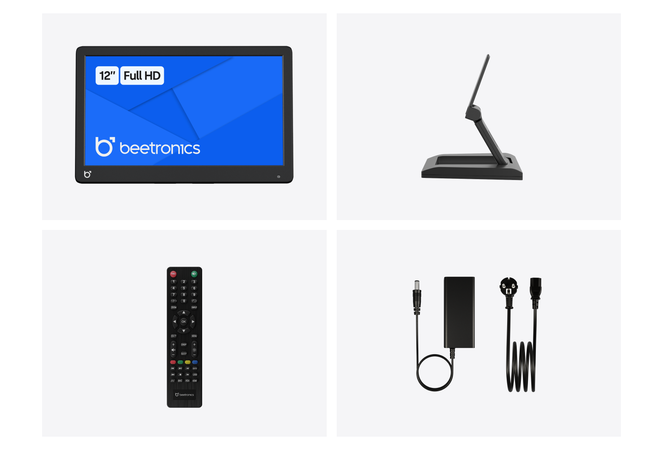

Package content
Includes
Monitor, Manual, Remote control, AC power adapter, Stand
Compatible accessories
Rack mounting
Wall mounting
Stand
VDK3 included as standard
