15 inch all-in-one touchscreen PC
15 inch all-in-one touchscreen PC
- High-brightness Full-HD multi-touch panel
- All-in-one PC with Linux Ubuntu
- Mounting: Flush, embedded, panel mount
- External dimensions: 402 x 252 x 49 mm
€ 1.199,00
€ 1.474,77 VAT incl.
Order by 4:00 pm for delivery on Thursday
- Description
- Specifications
- Connectivity
- Downloads
This 15-inch all-in-one PC seamlessly integrates a computer and touchscreen display into a single and robust device. Engineered with high-quality components and designed for commercial and industrial use, it ensures years of reliable performance in even the most demanding environments. The all-in-one features a high brightness, 1000 nit multi-touch panel and allows for dust- and waterproof installation, making it suitable for indoor and outdoor use. The 15AIO9M runs on the Linux Ubuntu operating system and can be integrated in both landscape and portrait mode using the included accessories.
Silent and powerful performance
with Linux Ubuntu
This all-in-one PC runs on Linux Ubuntu, offering a streamlined and adaptable user experience. It's configured to start automatically when powered on and can be operated directly through its touch interface, eliminating the need for a mouse or keyboard. The 15AIO9M provides versatile connectivity options, including WiFi and an RJ45 Ethernet port for seamless internet access. For expanded functionality, it features HDMI, VGA, and COM video outputs, as well as four USB ports for connecting peripherals. Thanks to its passive cooling system, this touchscreen PC operates silently and is maintenance free, even during intensive use.
Designed for
professional use
Engineered for industrial and commercial environments, the 15AIO9M is built to withstand challenging conditions. This robust all-in-one PC features vibration and shock resistance while accommodating a wide 9-36 volt input range. Its impact-resistant, hardened front panel allows for operation even with gloves, enhancing usability in various settings. The device's durability is further enhanced by a thermally coated PCB, integrated UV filter, and optically bonded touch panel. These features make the 15AIO9M versatile enough for both indoor and outdoor applications, ranging from kiosks and EV chargers to vehicle installations, production line interfaces, and deployment in public spaces.
Seamless integration
for all applications
The 15-inch all-in-one touchscreen features a durable metal housing with a waterproof and dust-resistant front panel. Designed without the need for ventilation, it easily integrates into any application using the included accessories. The slim, symmetrical bezel provides a sleek, seamless finish, making it ideal for both portrait and landscape panel mounting.
General
Manufacturer
Beetronics
Item number
15AIO9M
Product name
15 inch all-in-one touchscreen PC
Warranty
2 years
Datasheet
Quickstart
System specifications
Operating system
Linux Ubuntu
Processor
Intel Celeron J4125 2.0GHz Quad Core
Graphics
Intel UHD Graphics 600
Memory
4GB
Storage
SSD 120GB
WIFI
WIFI 4 (2.4 Ghz)
Panel
Diagonal size
15.6 inches (396 mm)
16:9 (4:3 adjustable)
Response time
10 ms
MTBF
50K
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
141
Brightness
1000 nits
Contrast
1000:1
Color encoding system
PAL/NTSC/SECAM
160° horizontal, 160° vertical
Surface
Mat tempered glas
Capacitive, 10-point multi-touch (PCAP), optically bonded
Touch control
Stylus, hand, glove

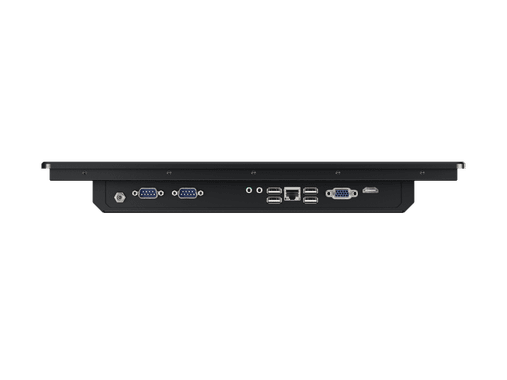

Connectivity
HDMI
1x
VGA
1x
COM (RS232)
2x
Ethernet (RJ45)
1x
USB-A (USB 2.0)
2x
USB-A (USB 3.0)
2x
AUX input (3.5mm)
1x
AUX output (3.5 mm)
1x
Size & weight
Colour
Black

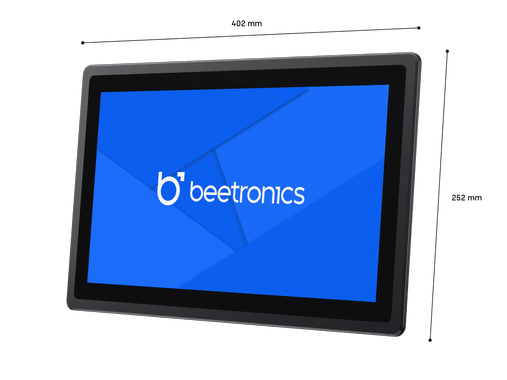

Dimensions (without stand)
402 x 252 x 49 mm
Active area
345 x 194 mm
Weight
4060 grams
3D Drawing
Power
Input voltage
DC 9-36V
Consumption
< 40.0 W (on), 0.5 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 19V-3A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Operating temperature
-20°C to +70°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 85% non-condensing
Mounting
VESA 75x75mm, VESA 100x100mm
Flush mount
Panel mount accessories included
Certifications & Standards
Package content
Includes
All-in-one-display, mounting clamps (8x), mounting brackets (8x), screws (8x), cable clips (4x), power adapter, quickstart
