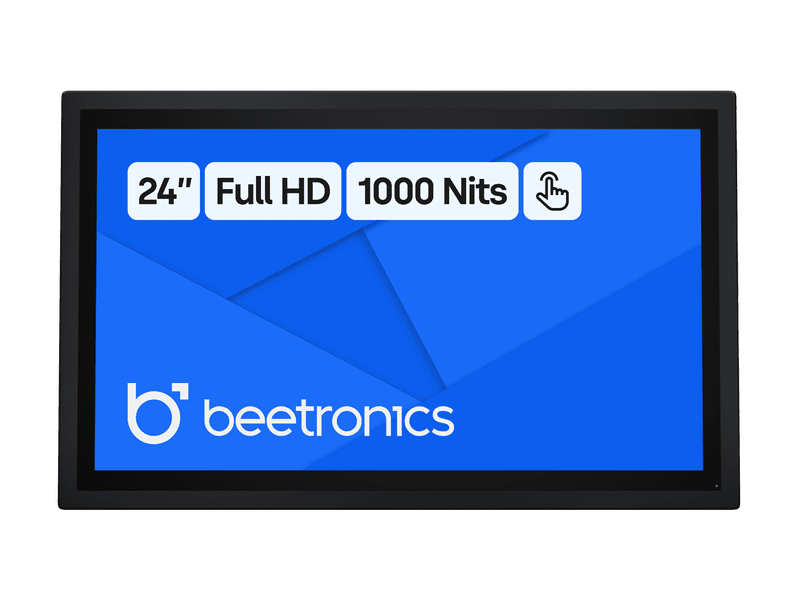

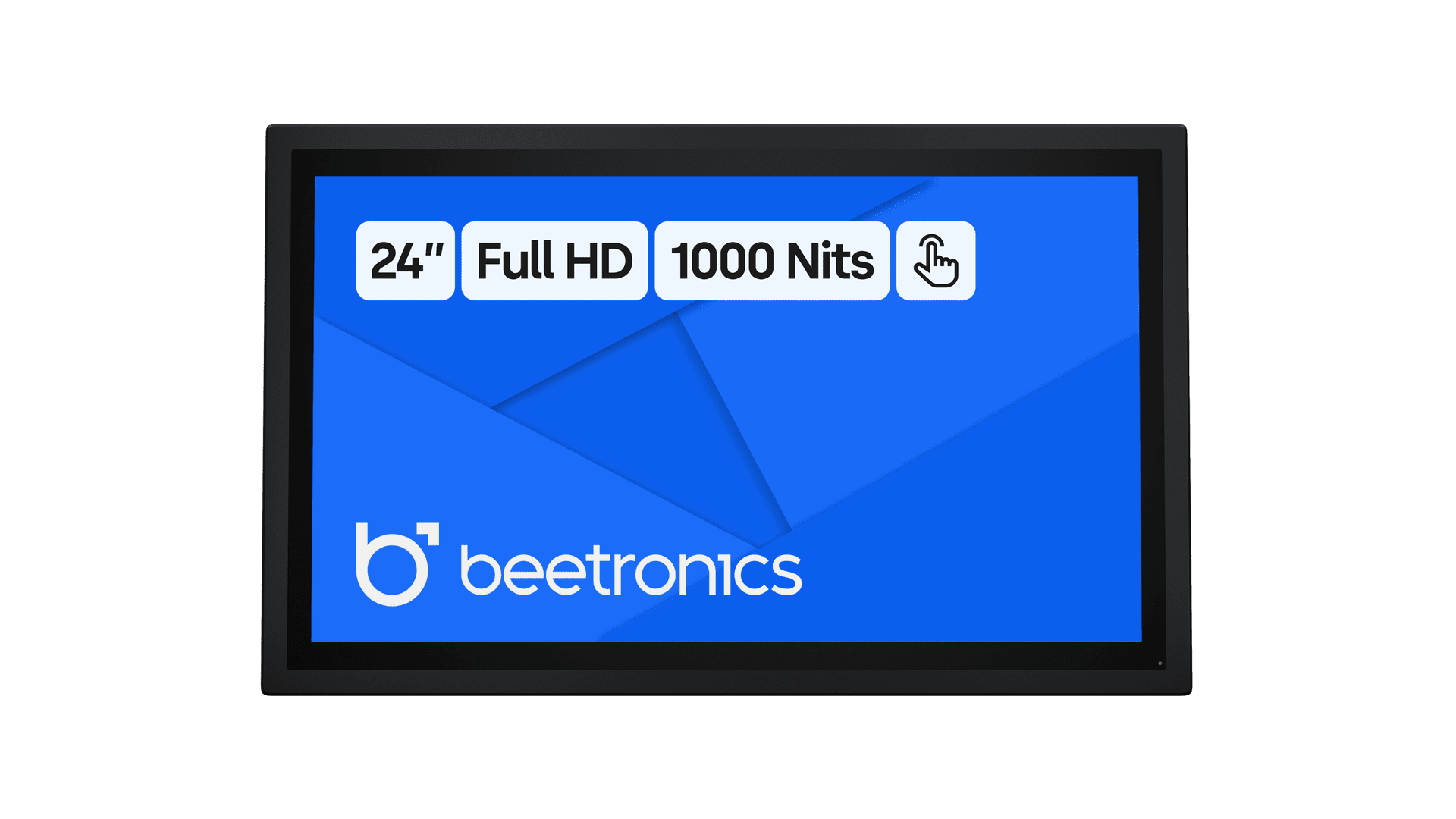

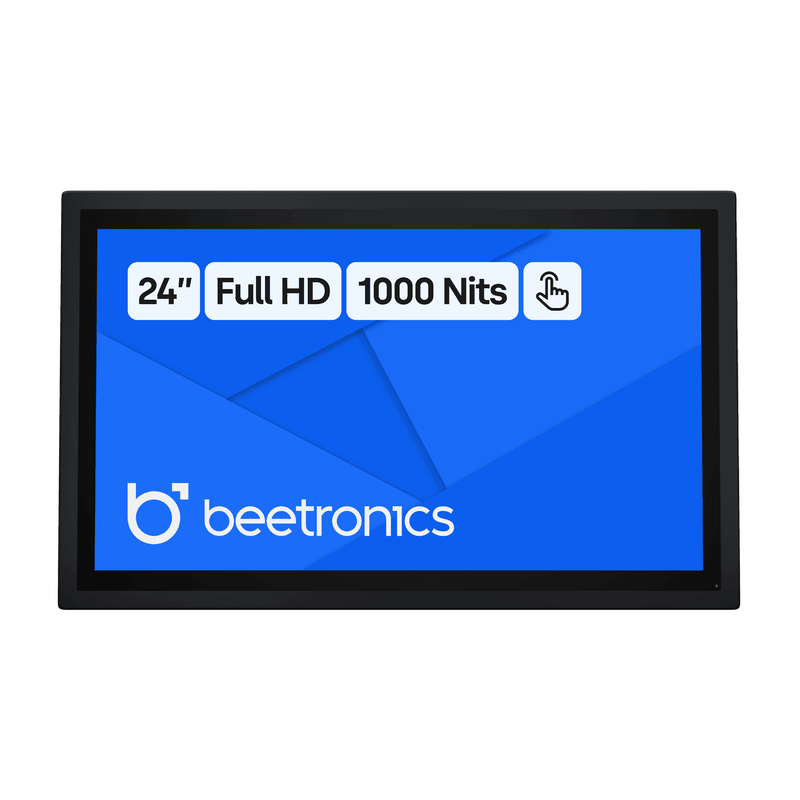

24 Inch Touchscreen Metal (High Brightness)

24 Inch Touchscreen Metal
(High Brightness)

Model: 24HB9M

7 units in stock

Features

High-brightness Full-HD multi-touch panel
Input: HDMI, DisplayPort, USB-C, VGA
Mounting: Flush, wall, desktop, embedded, panel mount
External dimensions: 590 x 365 x 49 mm

€ 899,00

€ 1.105,77 VAT incl.

Order by 4:00 pm for delivery on Wednesday.

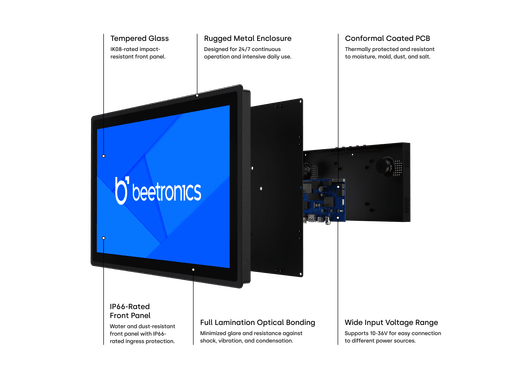

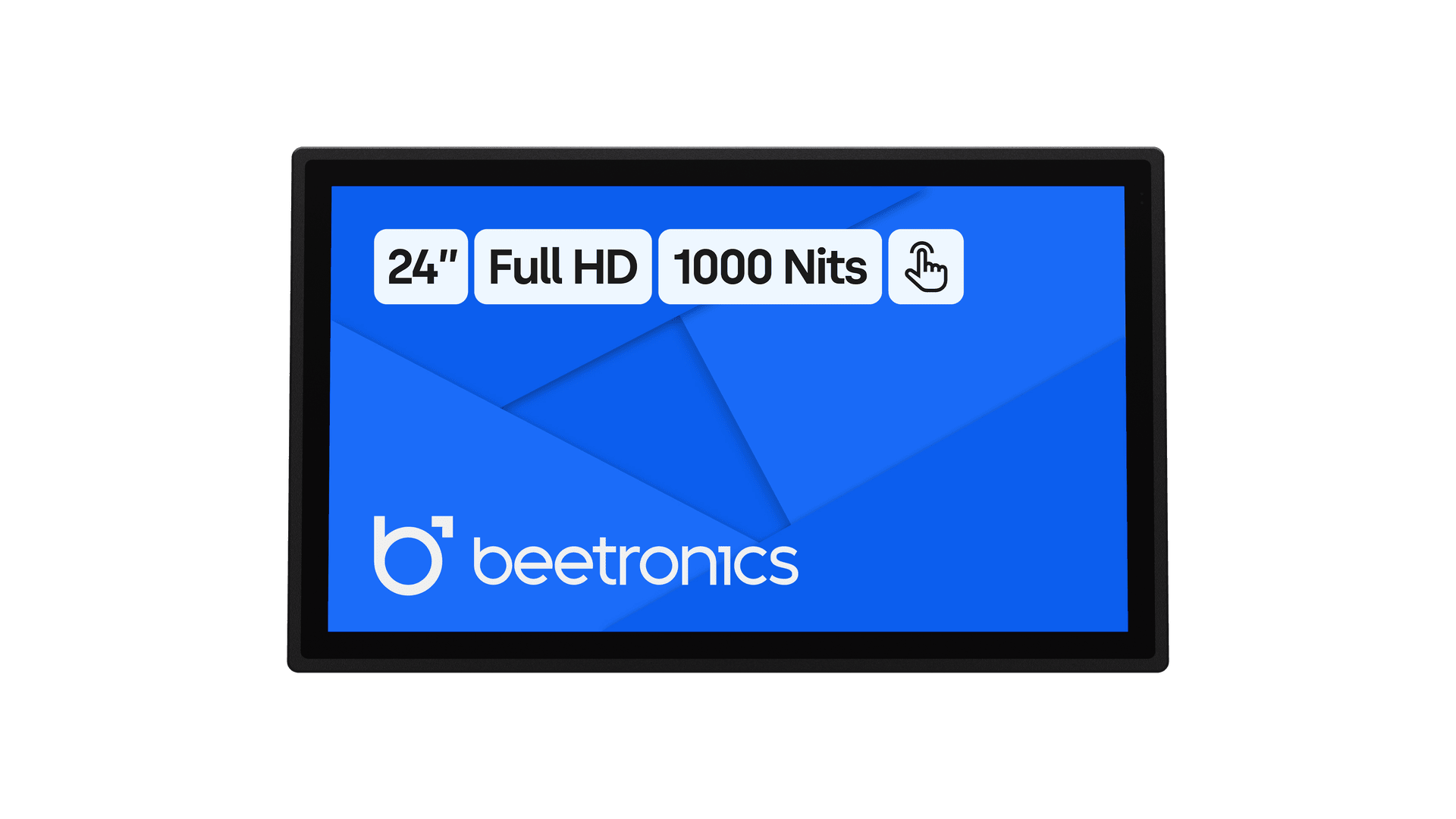

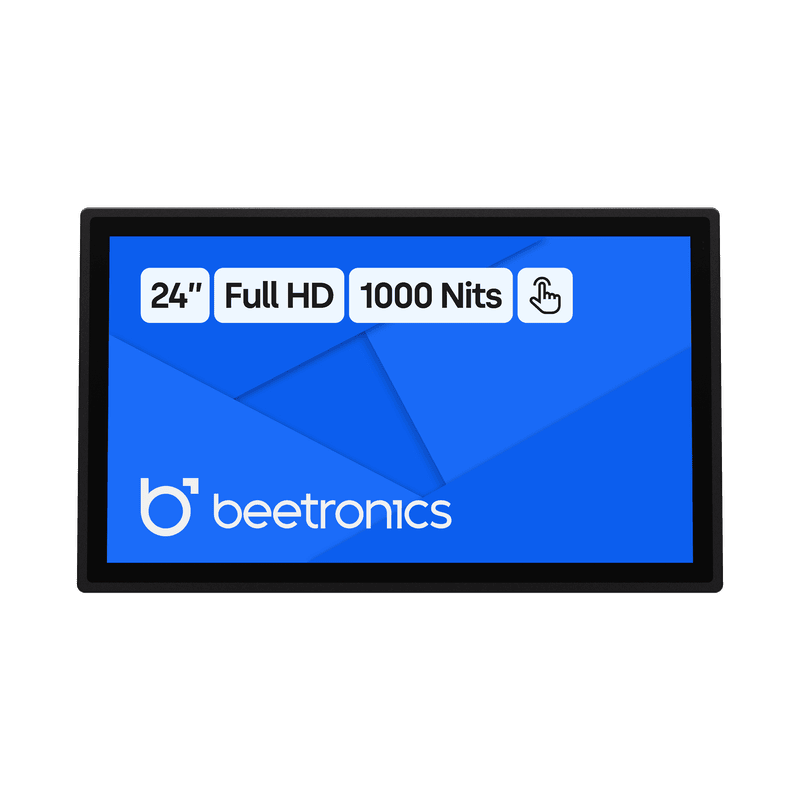

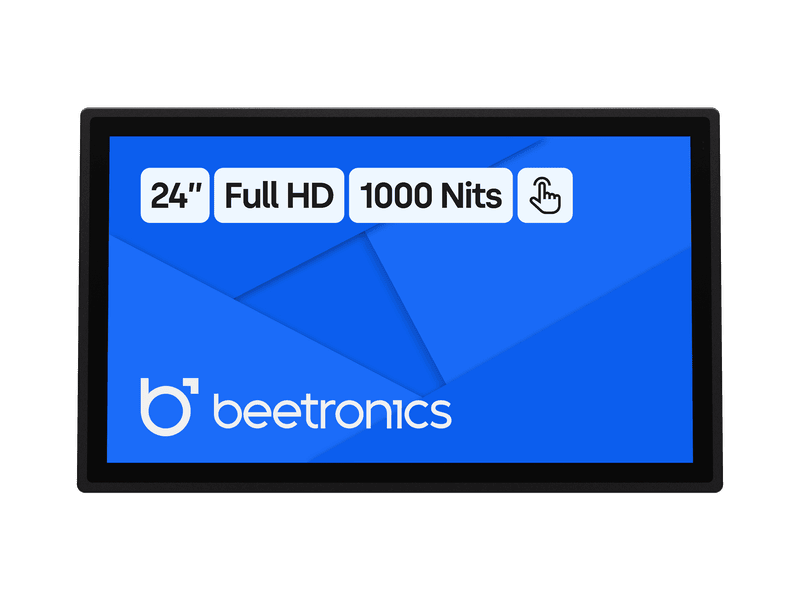

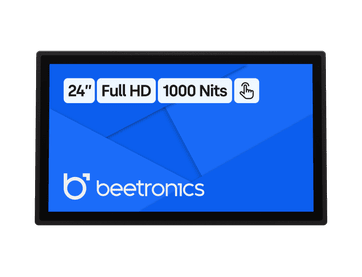

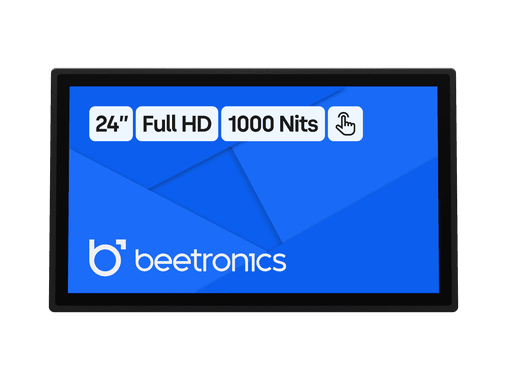

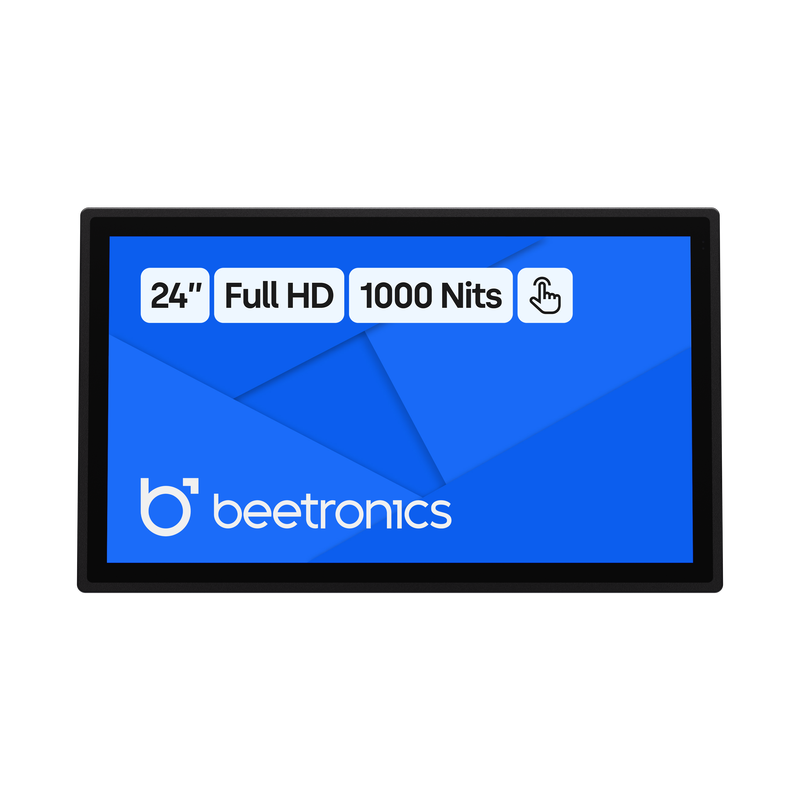

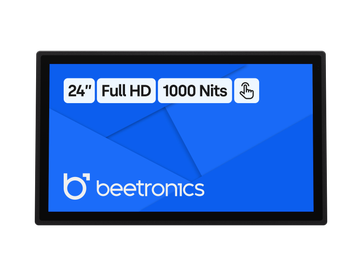

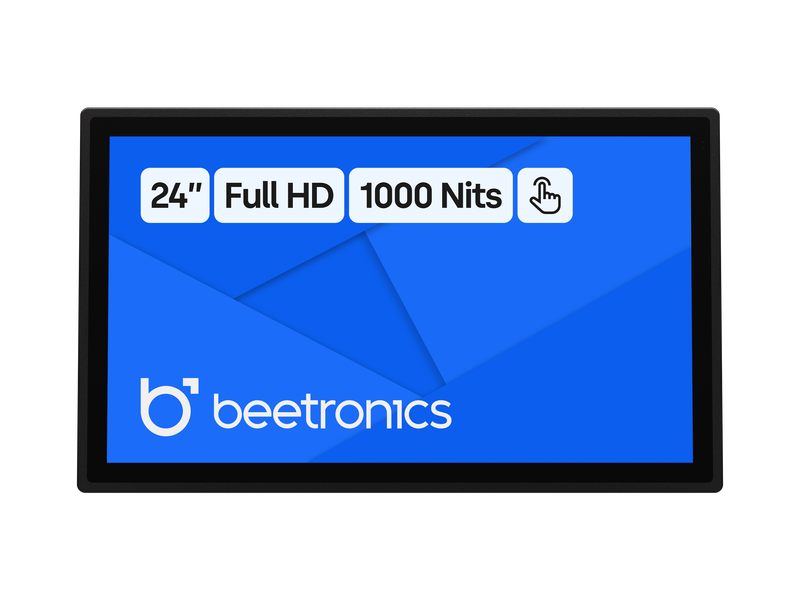

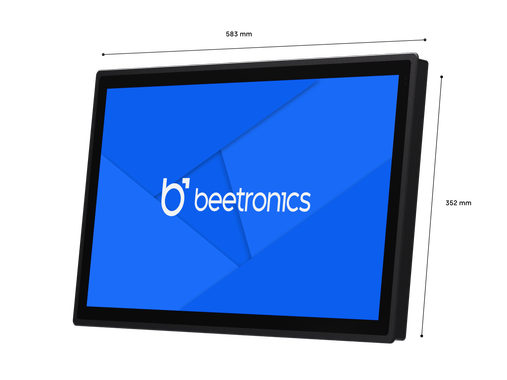

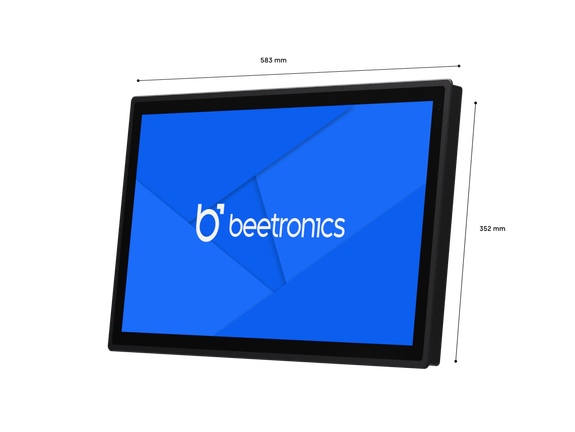

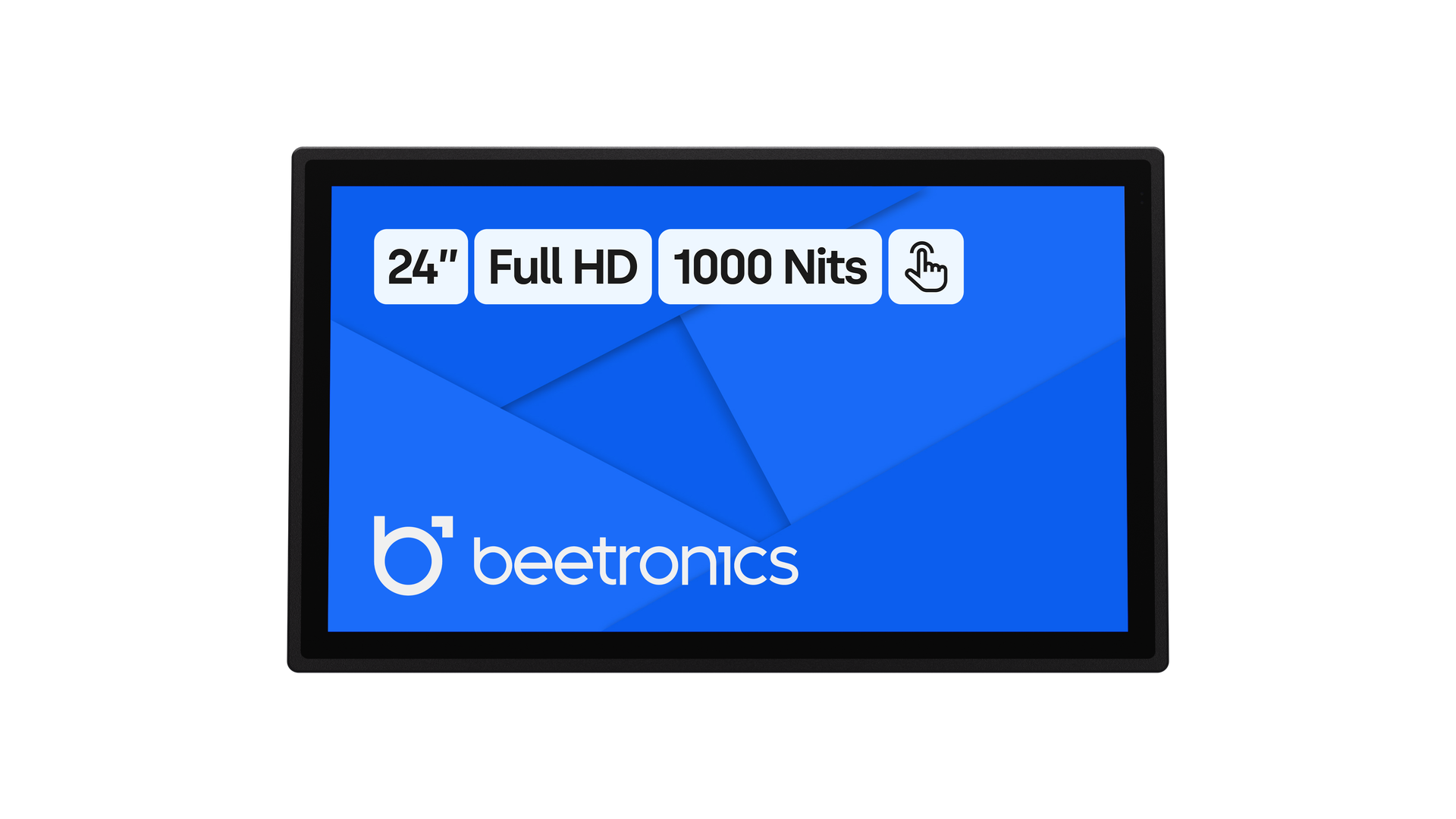

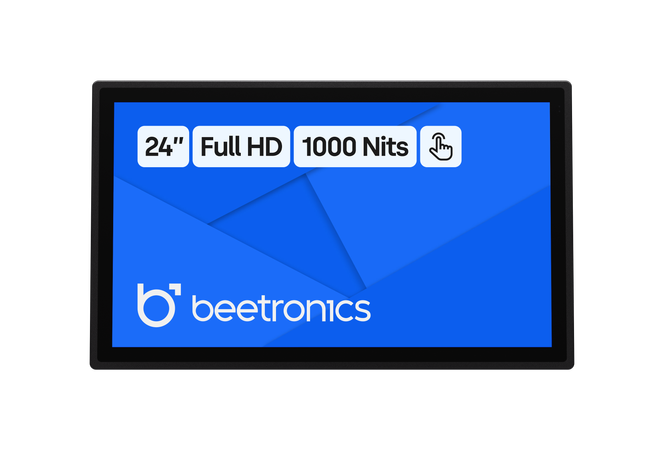

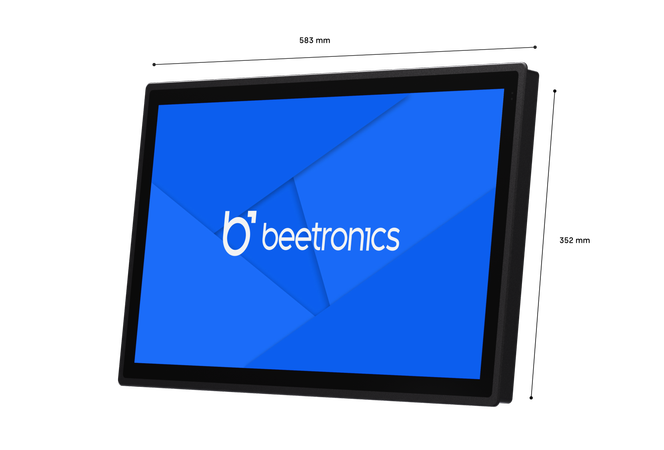

This 24-inch touchscreen monitor features a matte, Full HD panel with a high brightness of 1000 nits. The display is designed for both indoor and outdoor use and guarantees excellent visibility in any environment. Thanks to its sturdy and compact metal casing, the 24HB9M can be seamlessly integrated into any application. The touchscreen is suitable for professional, commercial, and industrial use.

Sunlight-readable Full HD multi-touch panel

The 24-inch touchscreen monitor is equipped with a Full HD panel that provides a sharp image with true-to-life colors. The touchscreen has a matte front panel with a high brightness of 1000 nits and is optically bonded. This ensures an easily readable image without reflections even in the brightest environments.

The screen brightness can also be automatically dimmed based on ambient light via the integrated light sensor. The brightness can also be manually adjusted using the included remote control or an optional dimmer knob.

Compatible with Windows, macOS, ChromeOS and Linux

The 24-inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.

Designed for professional use

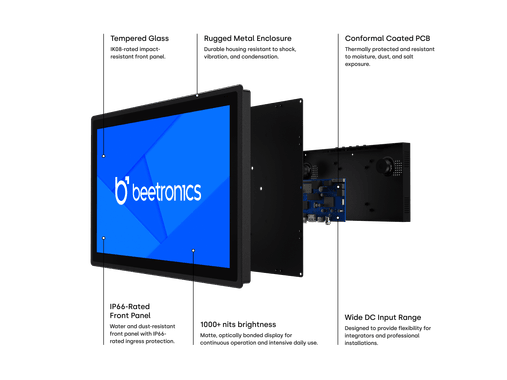

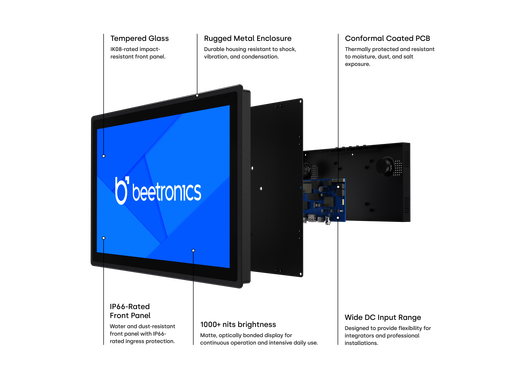

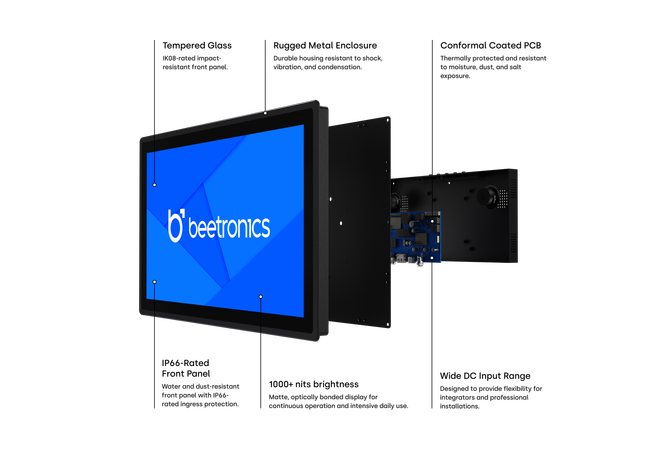

The 24HB9M is designed for professional applications and is suitable for continuous use. The display is produced using high-quality industrial components and features a robust metal casing with a sturdy front panel.

The display supports a wide input voltage of 9-36V DC, allowing it to be plugged direclly into an outlet or the popular 12V or 24V options.

Mounting options

Panel mount

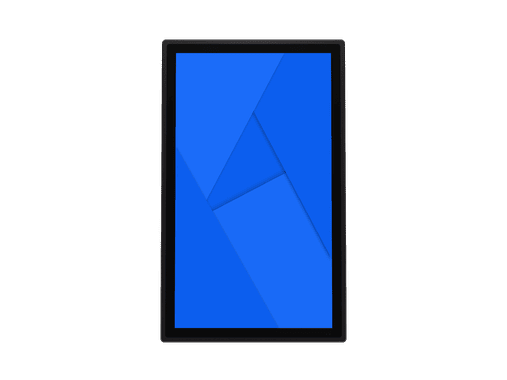

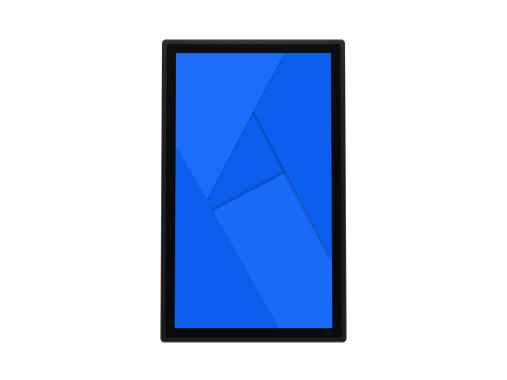

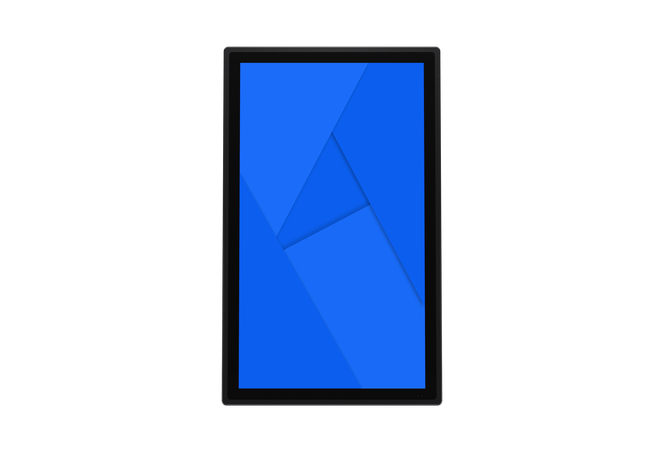

The monitor is designed for panel mounting, delivering a robust, water-resistant, and dust-proof solution. With its sleek, symmetrical bezel and integrated rubber sealing ring, it ensures a seamless, professional finish. This maintenance-free touchscreen requires no ventilation and is built for both indoor and outdoor environments. It supports mounting in both landscape and portrait orientations, offering flexible installation options to suit a variety of settings.

Wall mount

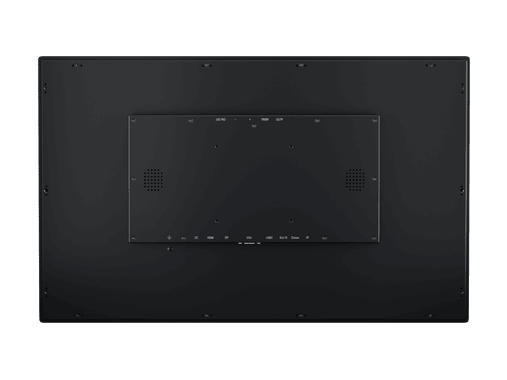

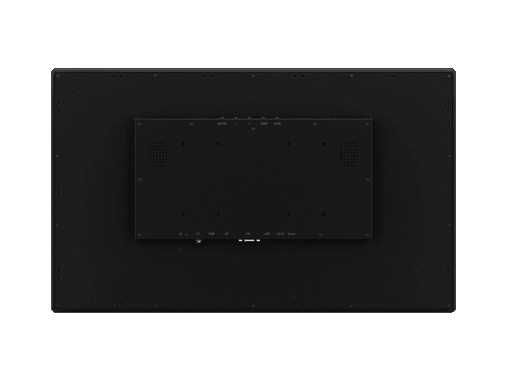

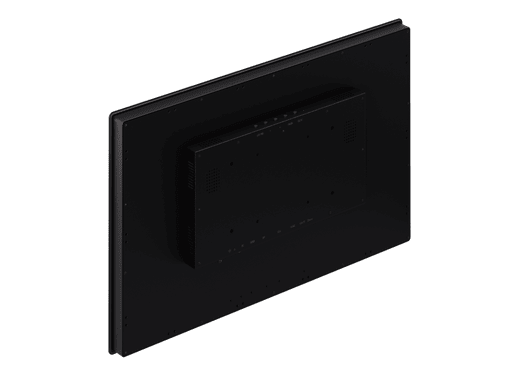

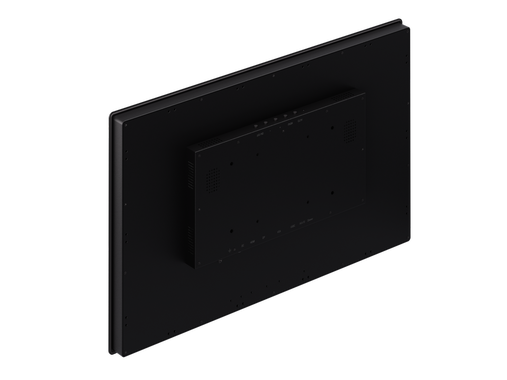

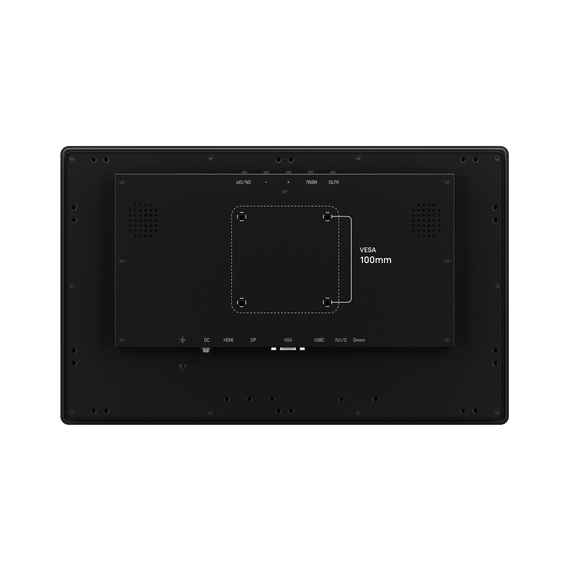

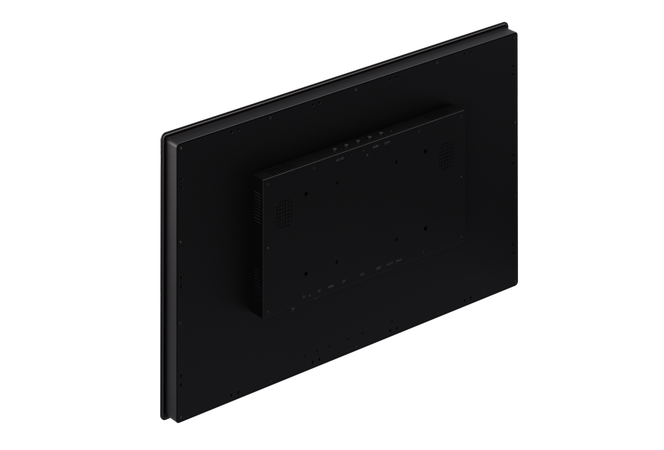

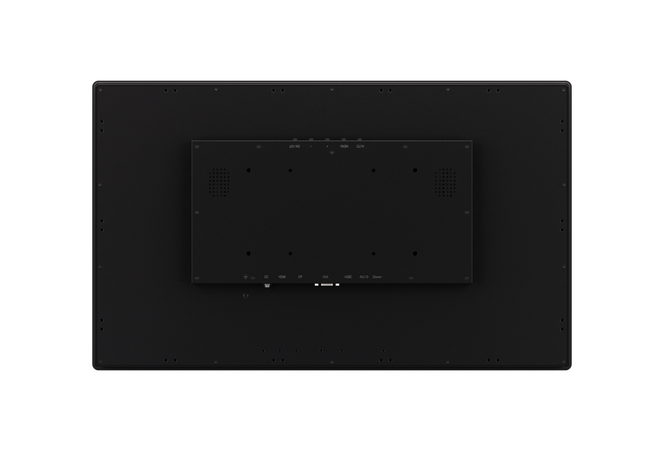

The touchscreen includes a universal 100mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Stand

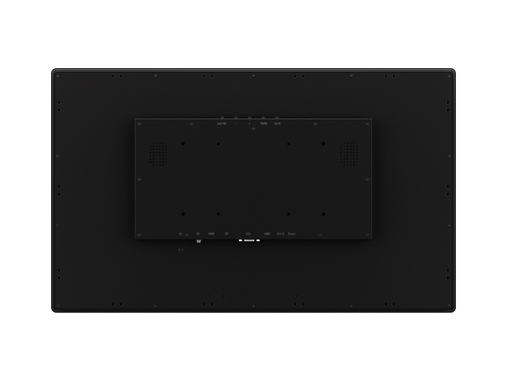

The touchscreen is equipped with a universal 100mm VESA mounting pattern on the back of the housing. This allows the touchscreen to be mounted on our optional VDK7 desk stand, as well as on universal stands and mounting brackets. It can be mounted in both landscape and portrait orientation.

General

Manufacturer

Beetronics

Item number

24HB9M

Product name

24 Inch Touchscreen Metal (High Brightness)

Warranty

2 years

Datasheet

Download PDF

User manual

Download PDF

Quickstart

Download PDF

Supported operating systems

Windows

Windows 8, 10, 11

Windows Embedded

Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise

macOS

Sequoia, Sonoma, Ventura

Linux

All Linux distributions

ChromeOS

All ChromeOS versions

Brightsign

All BrightsignOS versions

Samsung DeX

All Samsung DeX versions

Panel

Diagonal size

23.8 inches (607 mm)

Aspect ratio

16:9 (4:3 adjustable)

Native resolution

1920 x 1080

Supported resolutions

1920 x 1080 (max), 640 x 480 (min)

Pixels per inch

93 PPI

Brightness

1000 nits

Contrast

1000:1

Color encoding system

PAL/NTSC/SECAM

Viewing angle

170° horizontal, 170° vertical

Surface

Mat tempered glas

Touch technology

Capacitive, 10-point multi-touch (PCAP), optically bonded

Touch control

Stylus, hand, glove

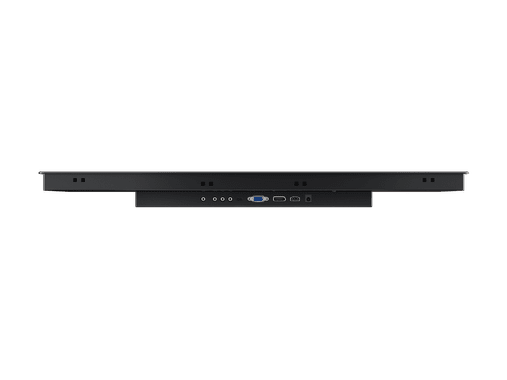

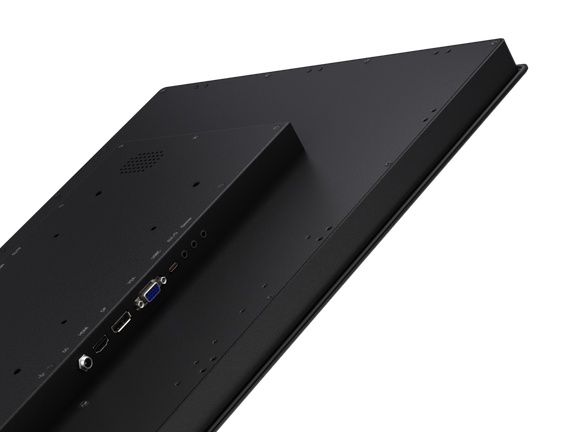

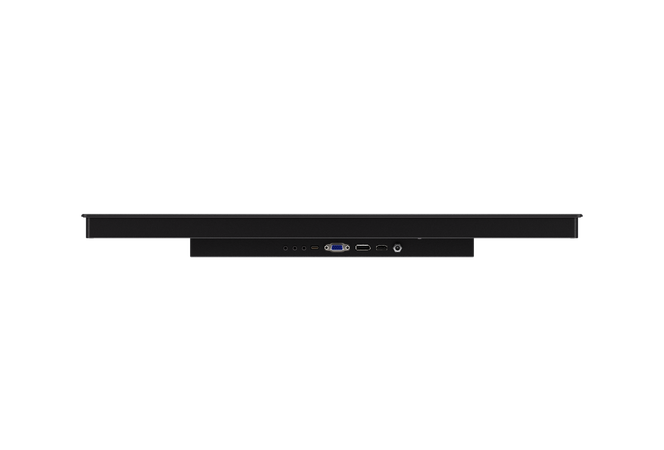

Connectivity

HDMI

DisplayPort

VGA

USB-C

1x Video, audio, touch

USB-A

Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.

AUX input (3.5mm)

AUX output (3.5 mm)

Size & weight

Colour

Black

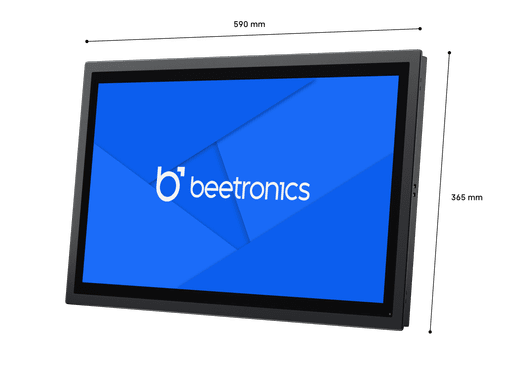

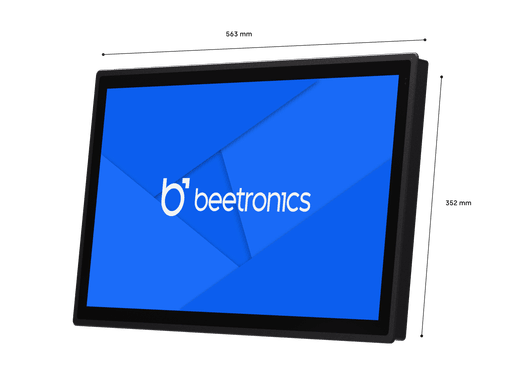

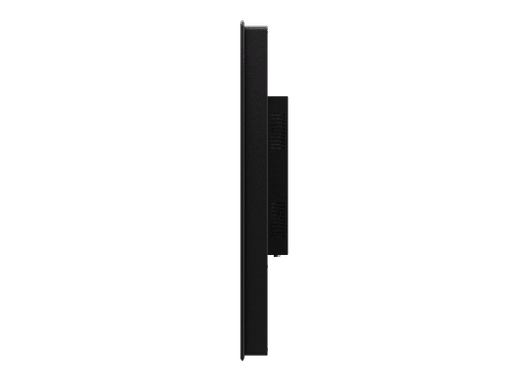

Dimensions (without stand)

590 x 365 x 49 mm

Active area

529 x 333 mm

Weight

7600 grams

Technical drawing

Download PDF

3D Drawing

Download CAD/STP

Features and functions

Key-lock

The control buttons can be blocked

Auto-on

Automatically powers on when it receives current or a signal

Dimmable

Automatic dimming based on ambient light via an integrated light sensor. Manual dimming via the remote control or an optional dimmer knob.

Orientation

Landscape, portrait, face-up

Power

Input voltage

DC 9-36V

Consumption

Typical 33.0 W (on), 0.4 W (standby)

Power supply

External DC (power adapter included)

Power adapter

Input: AC100-240V, 50/60Hz , Output: 19V-2.5A

Power adapter output connector

DC barrel plug 2.1mm x 5.5mm

Environmental

Max. non-stop operating time

24/7

Operating temperature

-20°C to +70°C

Storage temperature

-30°C to +80°C

Operating humidity

20% - 85% non-condensing

Mounting

Wall mount

VESA 100x100mm

Flush mount

Panel mount accessories included

Certifications & Standards

IP rating

IP65 when panel mounted

Impact protection

IK08

Certifications

CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC, CAN ICES-003(A)/NMB-003(A)

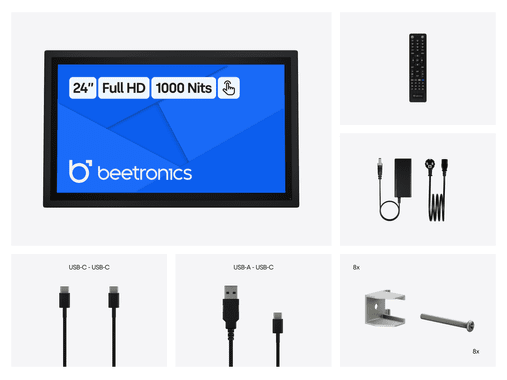

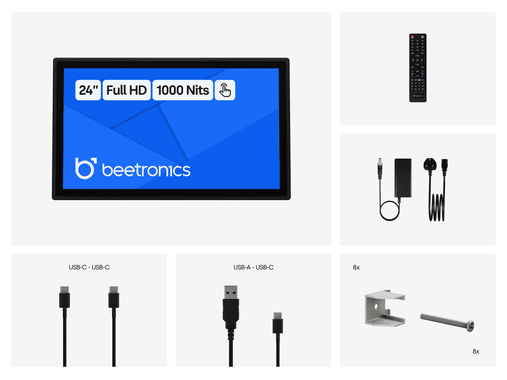

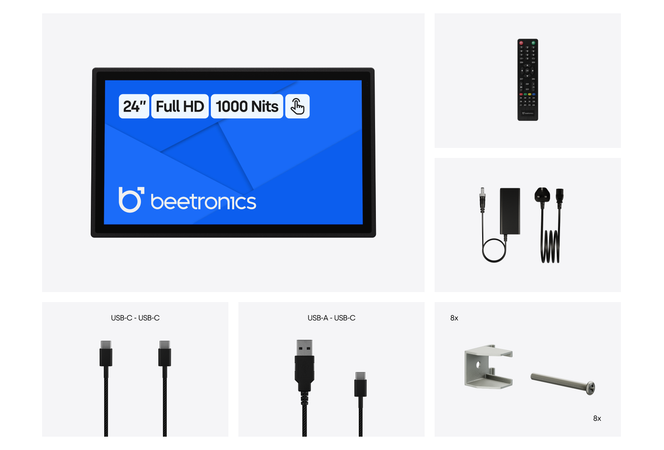

Package content

Includes

Touchscreen, USB-C to USB-C cable, USB-C to USB-A cable, remote control, mounting clamps (8x), mounting strips (8x), screws (8x), rubber seal, power adapter, manual

Compatible accessories

Dimmer

Compatible with external dimmer (DMK7/DMK8)

Wall mounting

Compatible with flat wall mount bracket (VWB1)

Touch pen

Compatible with CTS7 capacitive touchscreen stylus
