General
Manufacturer
Beetronics
Item number
7HD7M
Previous model
7HDM
Product name

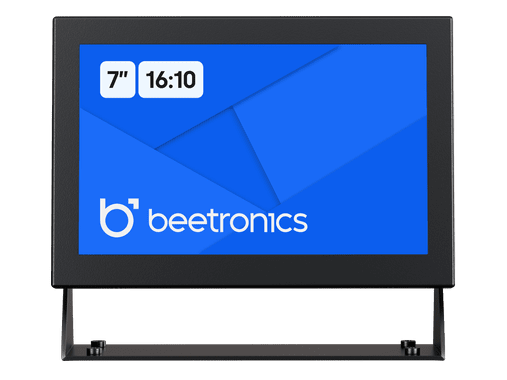

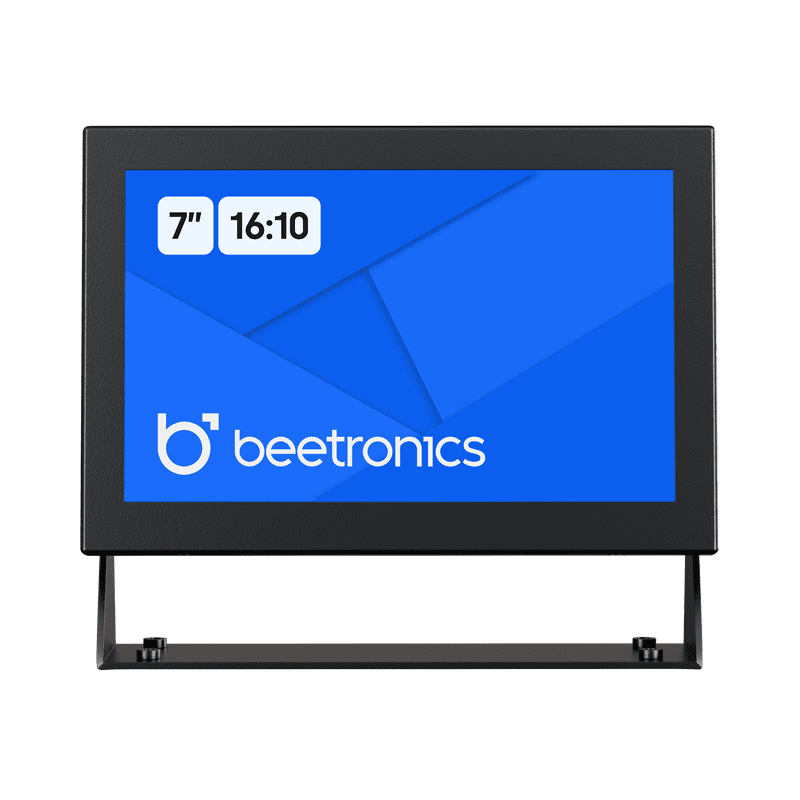

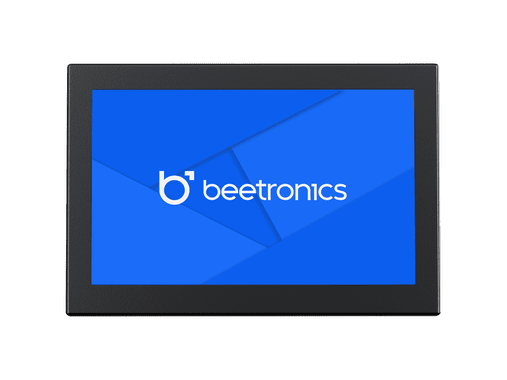

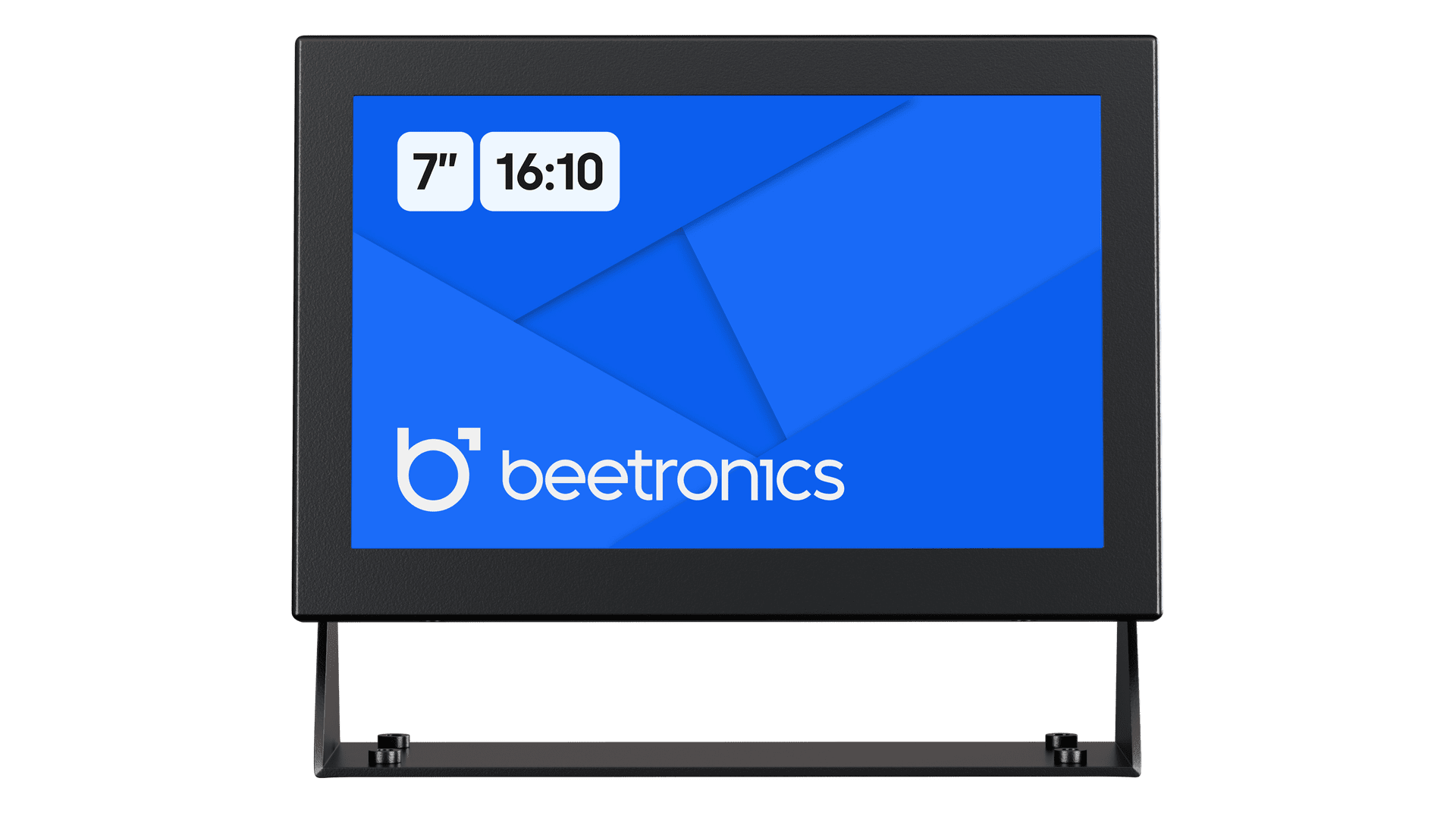

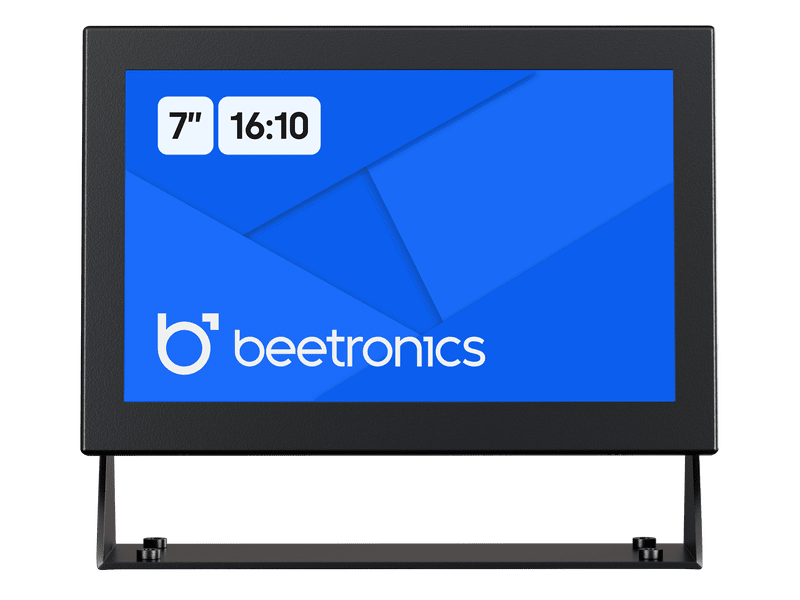

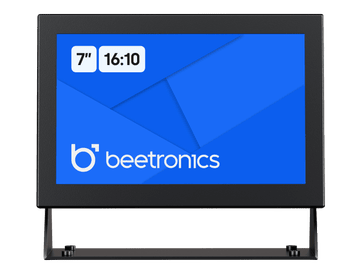

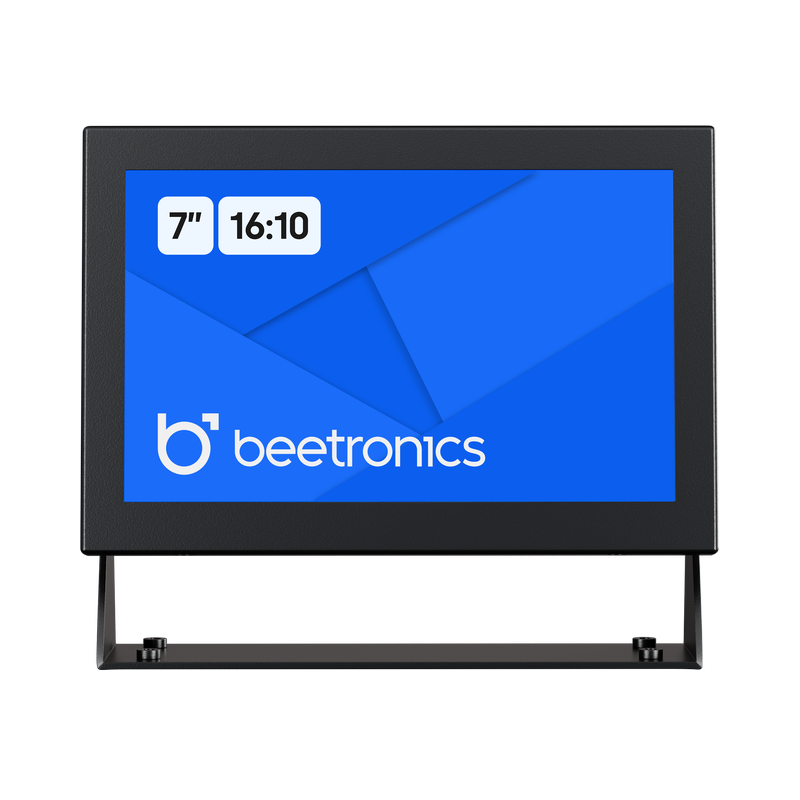

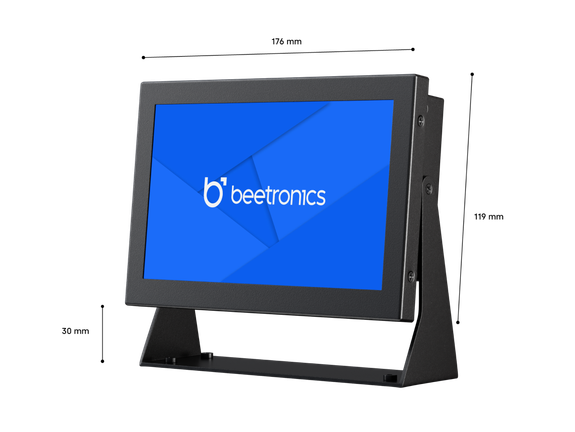

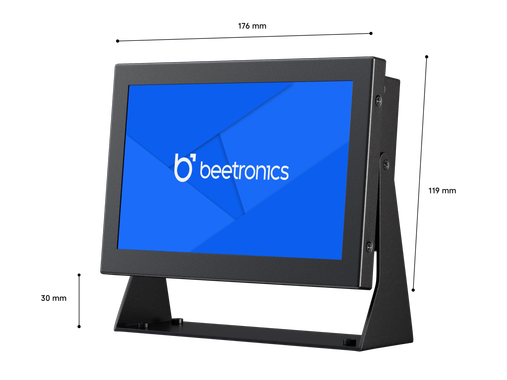

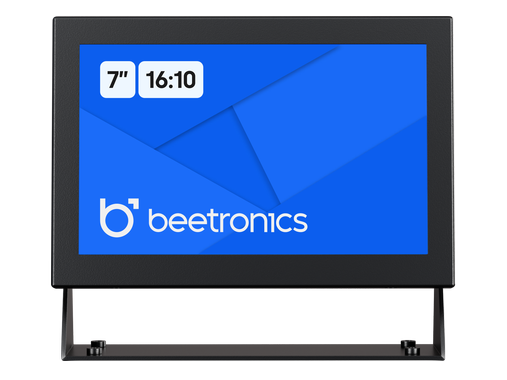

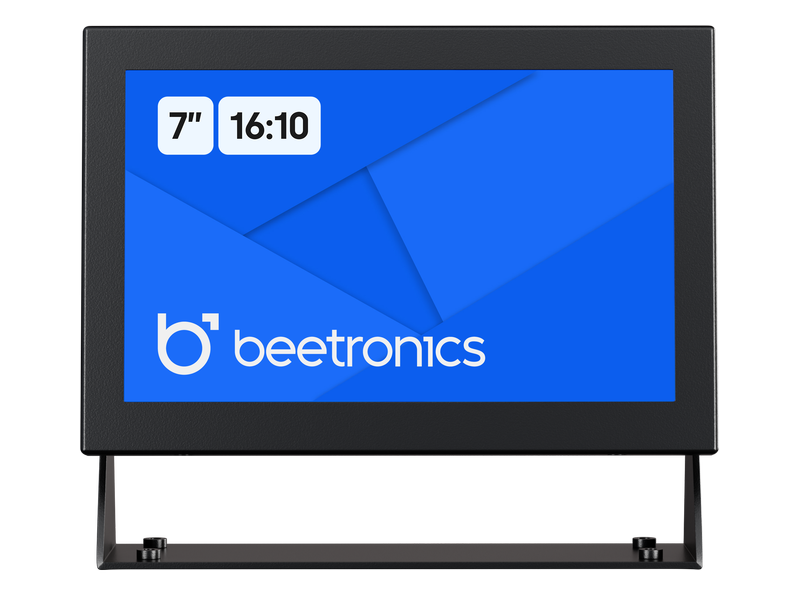

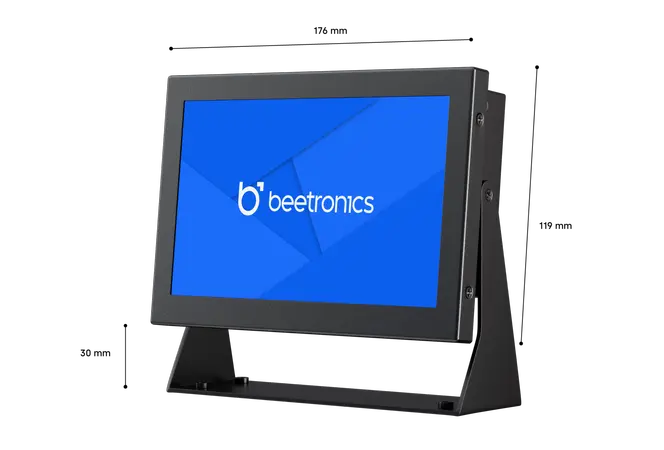

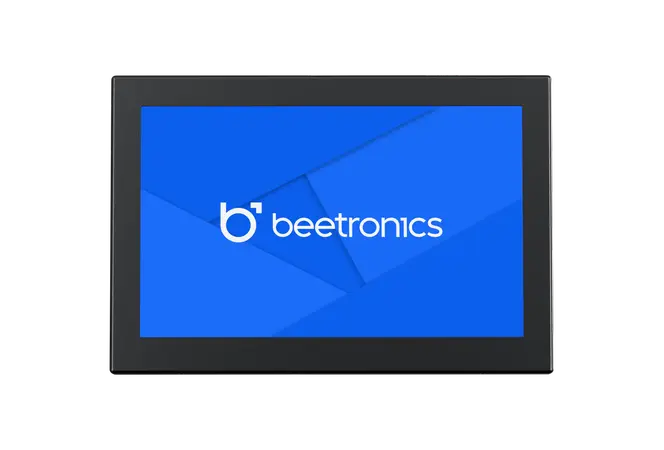

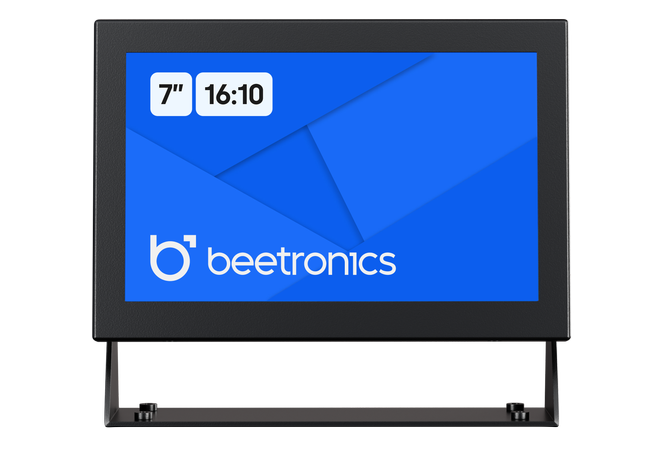

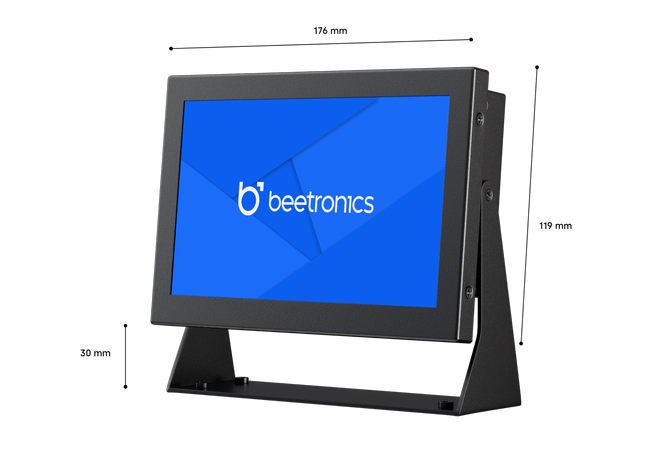

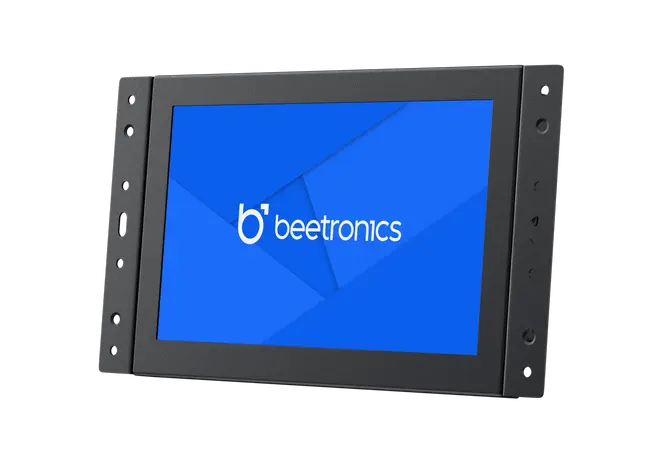

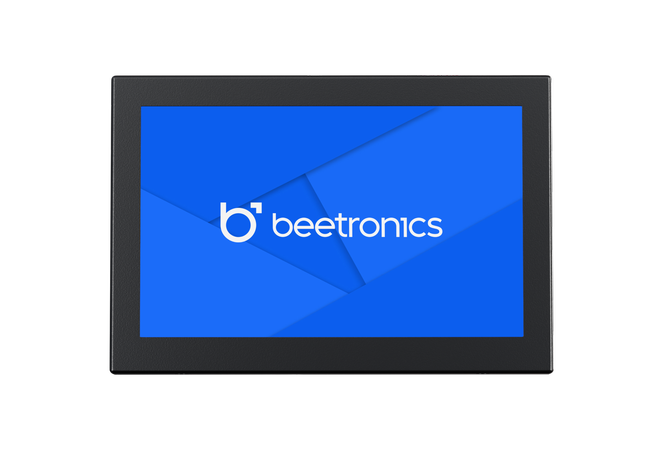

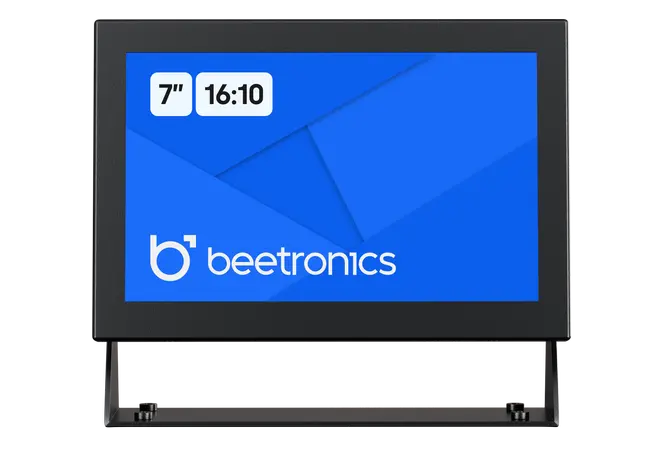

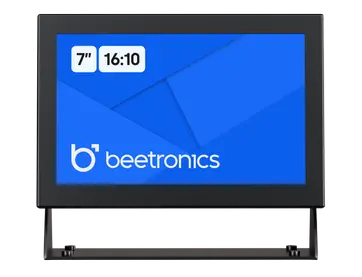

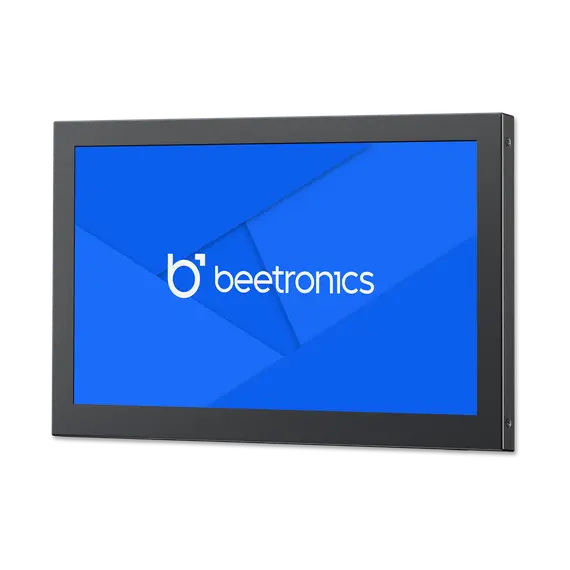

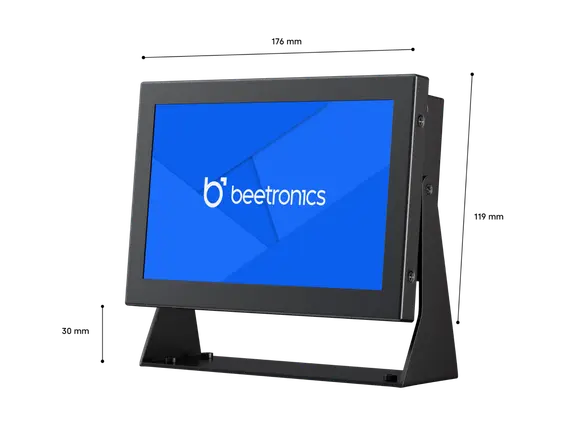

7 Inch Monitor Metal
Warranty
2 years
Datasheet
User manual
Quickstart

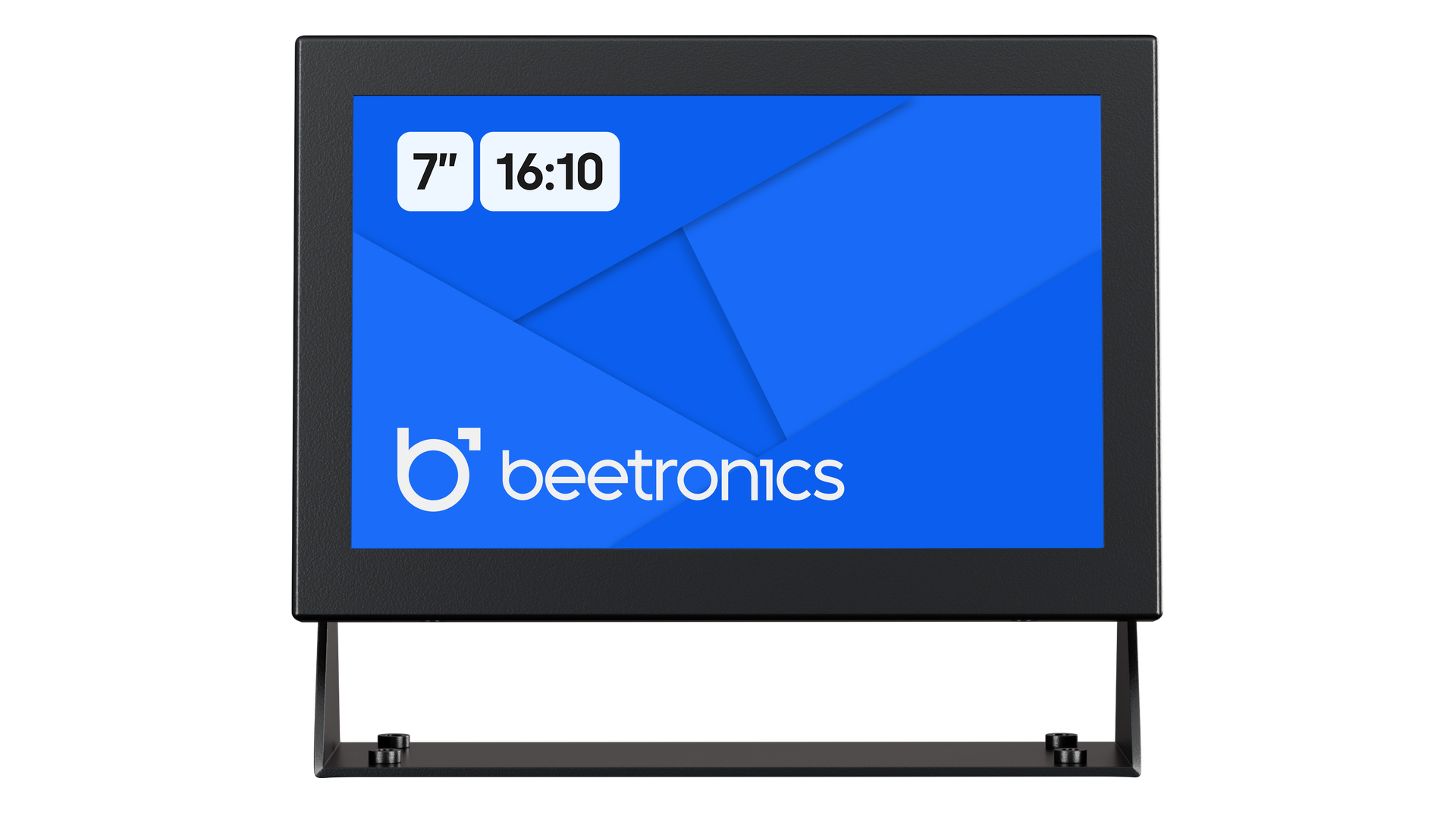

Panel
7.0 inches (177 mm)
IPS-LCD
16:10 (16:9, 4:3 adjustable)
10 ms
50K
1280 x 800
1920 x 1200 (max), 640 x 480 (min)
217 PPI
LED
400 cd/m2
800:1
PAL/NTSC/SECAM
178° horizontal, 178° vertical

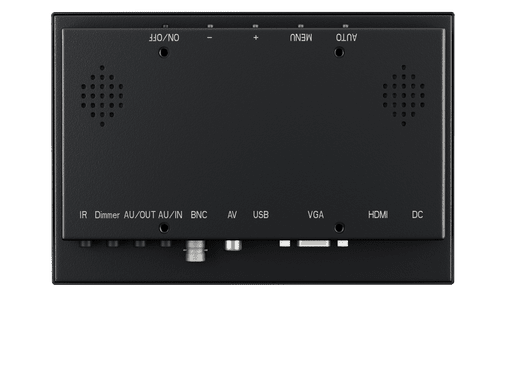

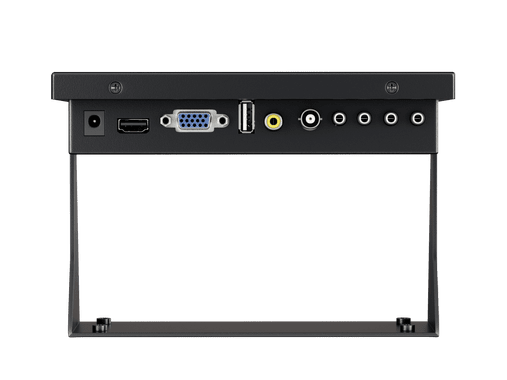

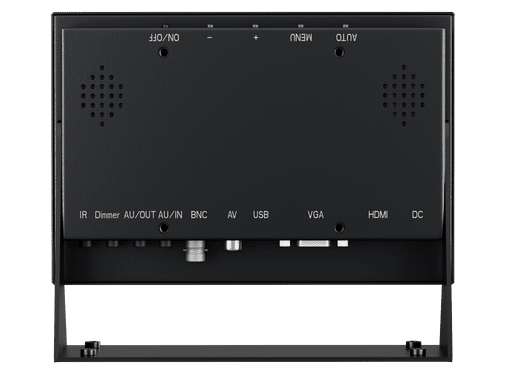

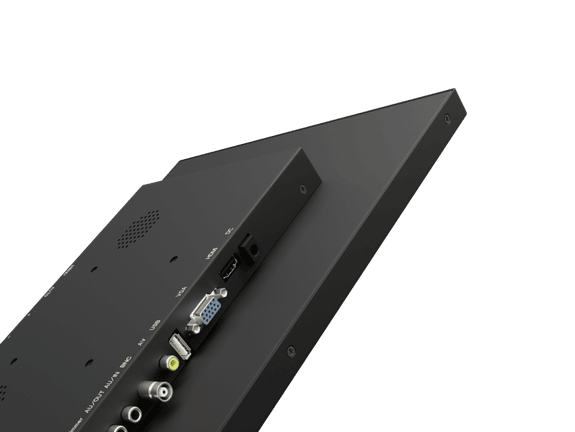

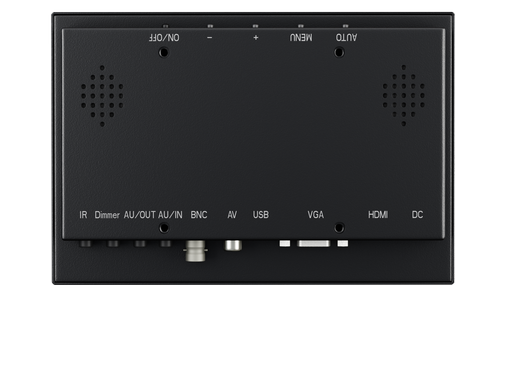

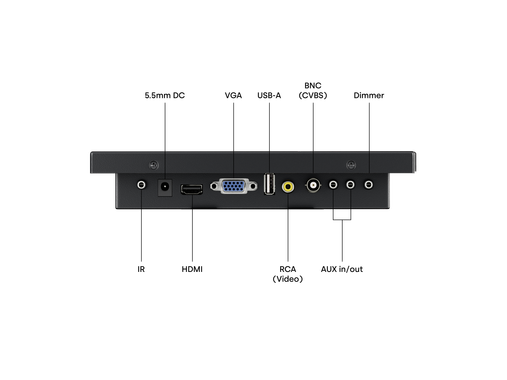

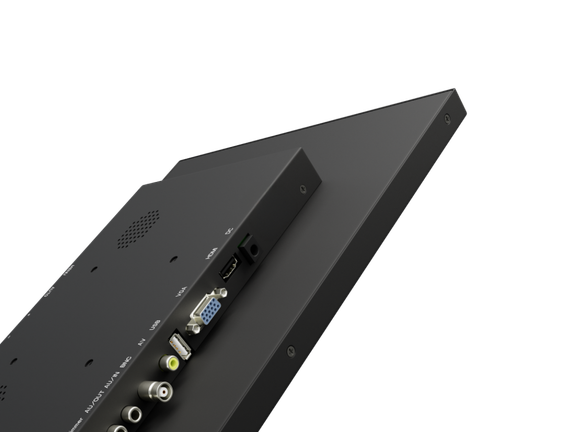

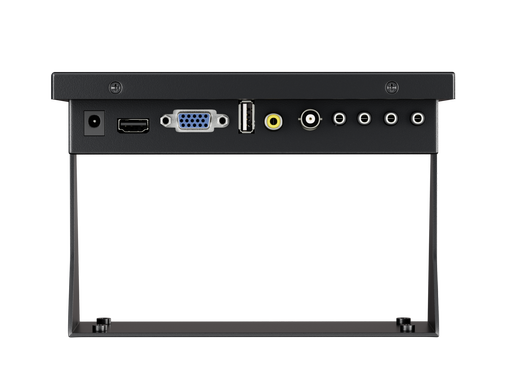

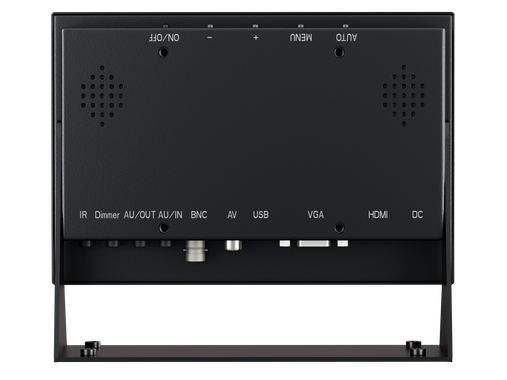

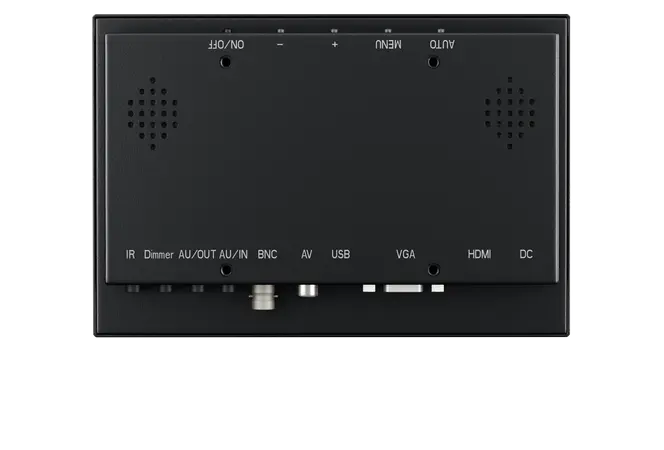

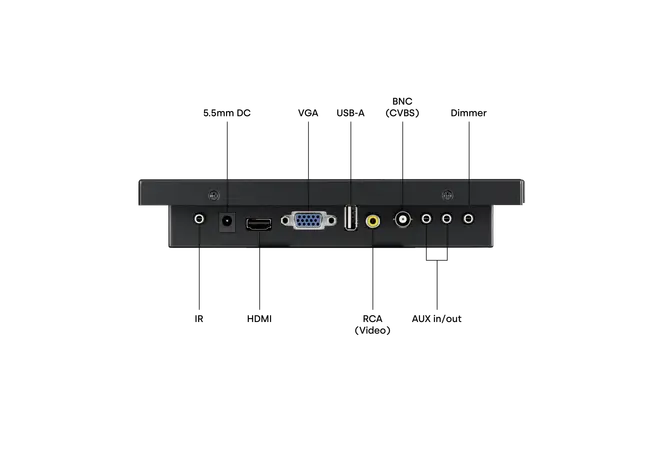

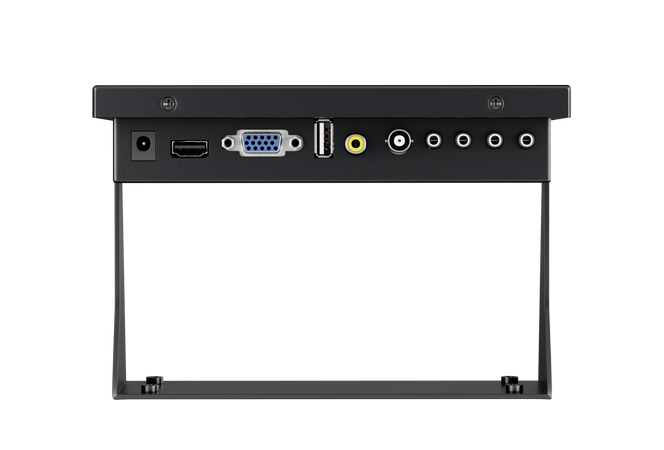

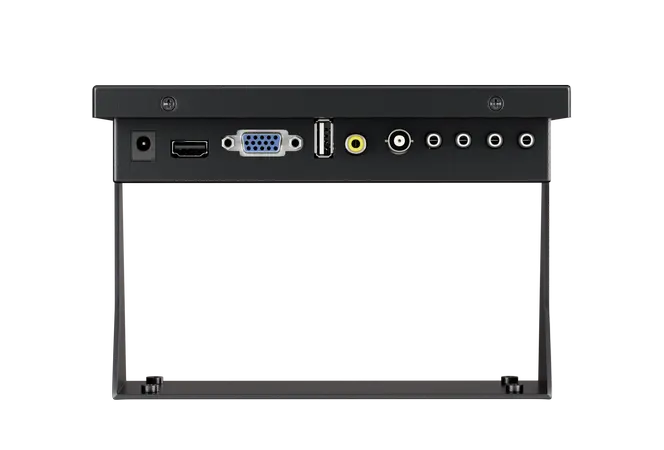

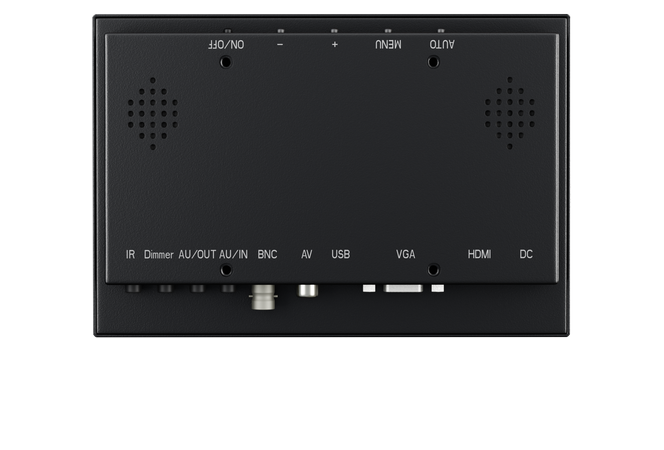

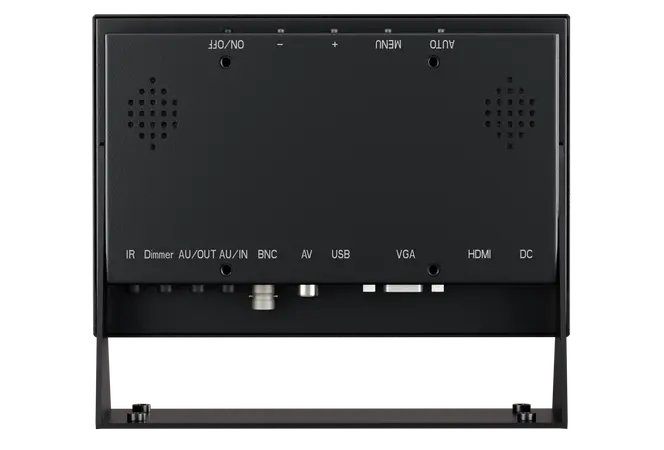

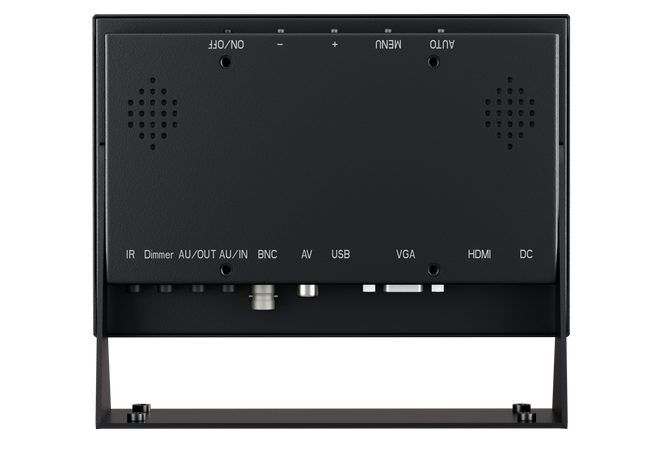

Connectivity
1x
1x
1x
1x
1x integrated USB media player
1x
1x
Size & weight
Colour
Black

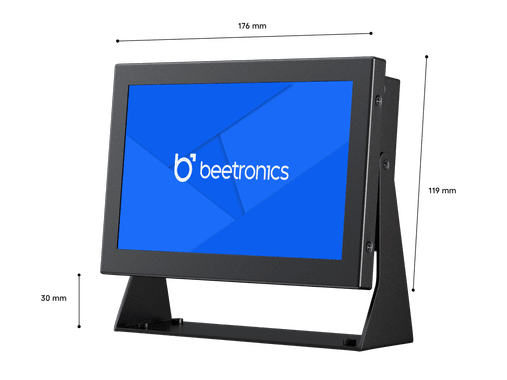

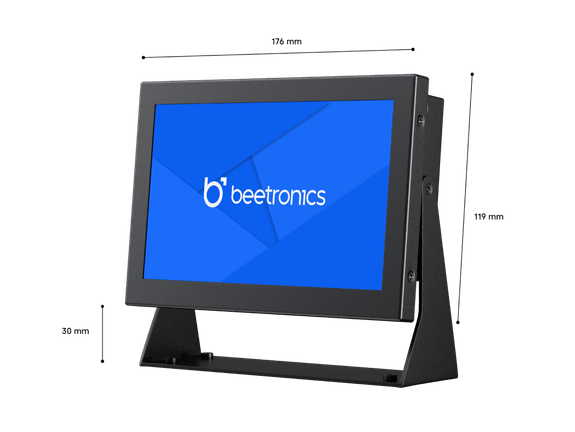

Dimensions (without stand)
176 x 119 x 35 mm
150 x 94 mm
600 grams (800 gram with stand)
Technical drawing

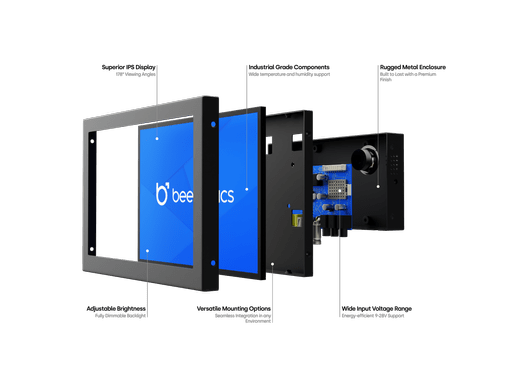

3D Drawing
Features and functions
Integrated speakers
The control buttons can be blocked
Automatically powers on when it receives current or a signal
Adjustable backlight brightness
Image can be mirrored, horizontally and vertically

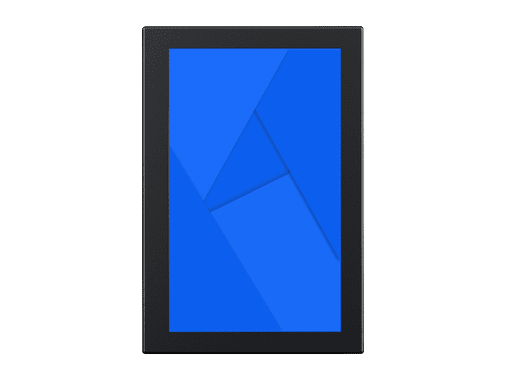

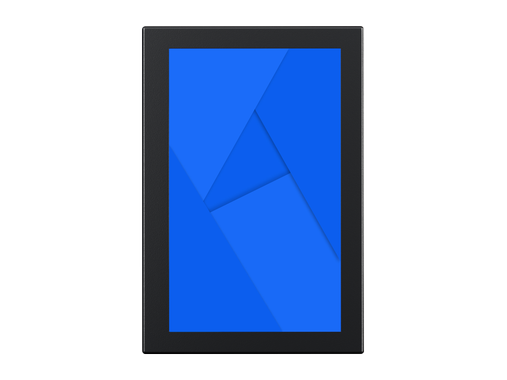

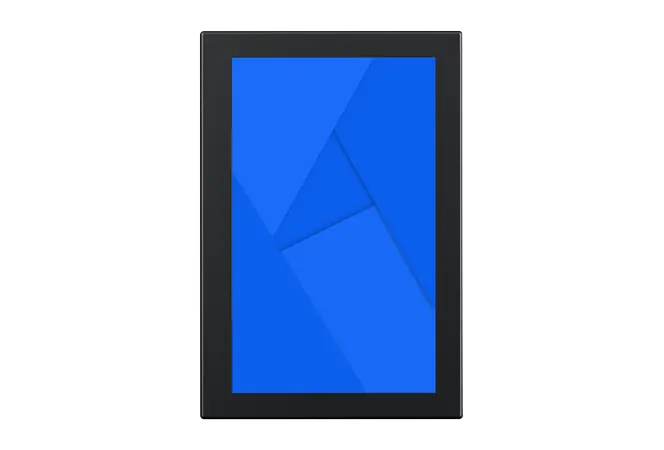

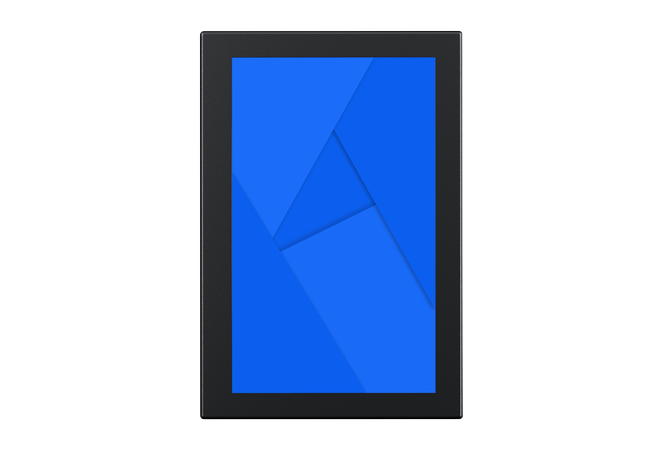

Landscape, portrait, face-up
The monitor is equipped with a built-in USB media player.
Power
DC 9-36V
External DC (power adapter included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 85% non-condensing

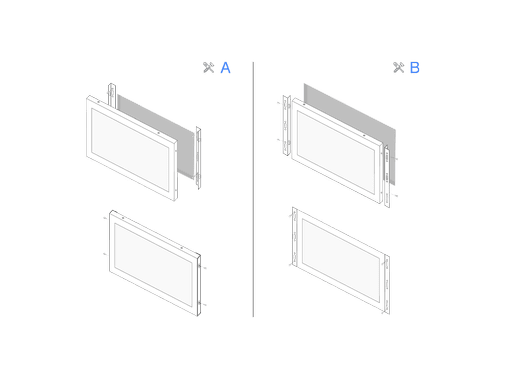

Mounting

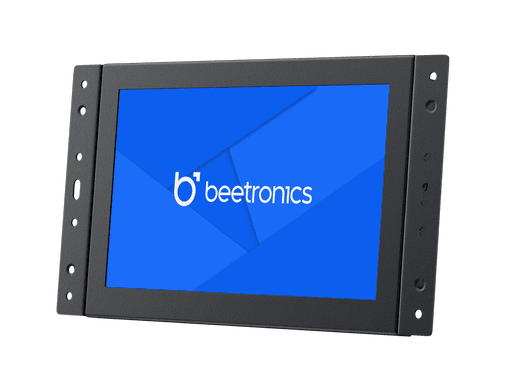

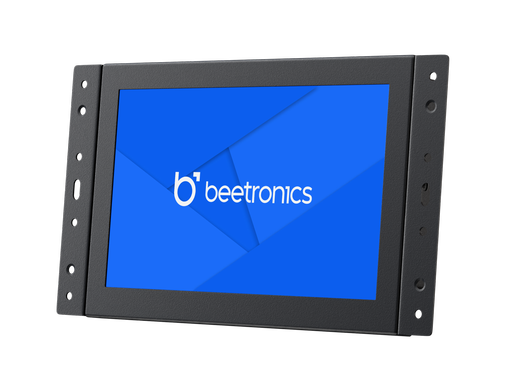

Flush mount

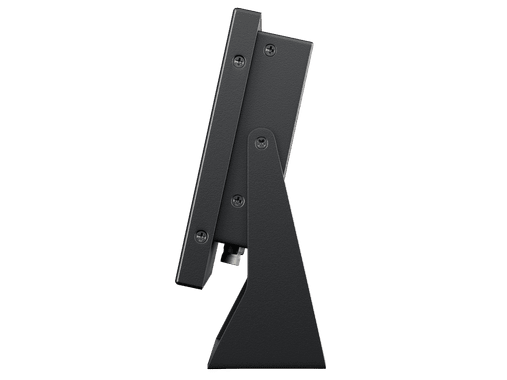

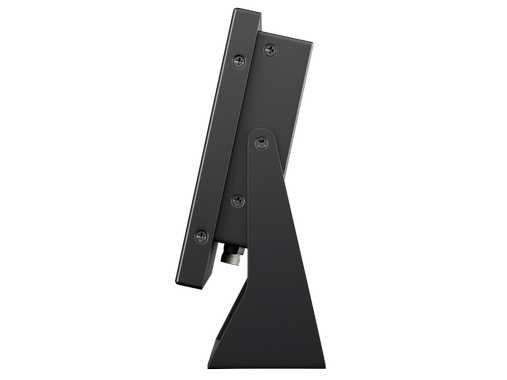

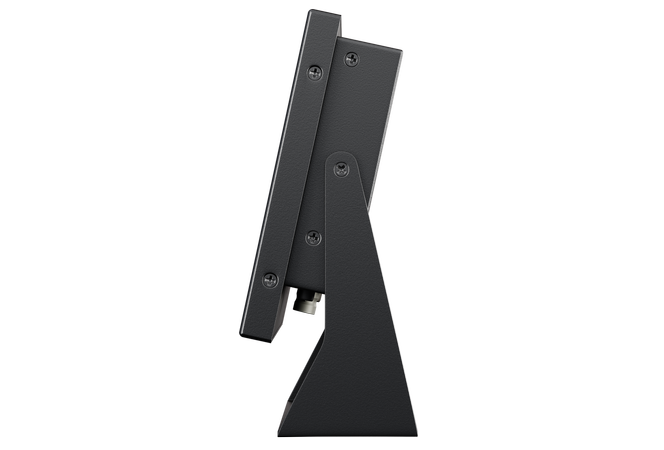

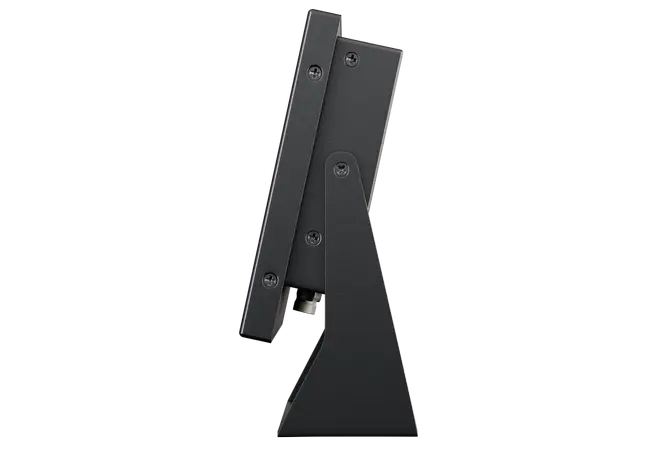

Stand
Adjustable and detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC, CAN ICES-003(A)/NMB-003(A)

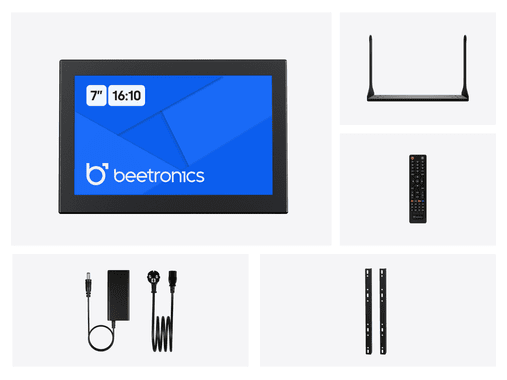

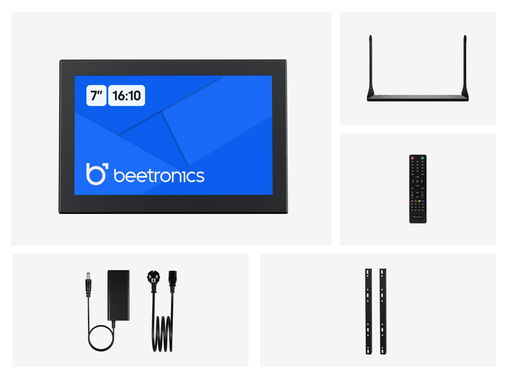

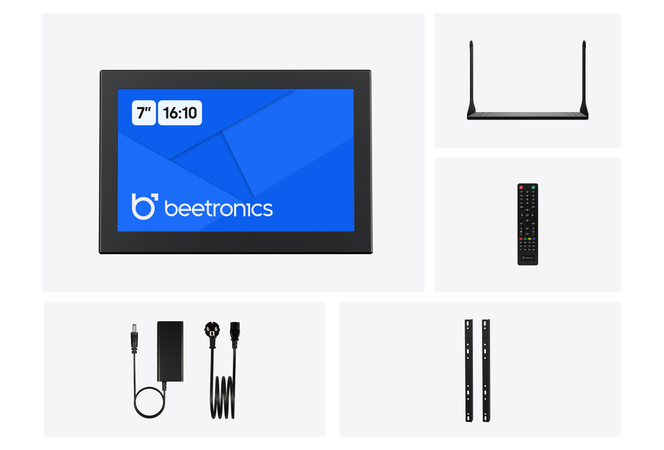

Package content
Includes
Monitor, Stand, Remote control, Mounting strips, AC power adapter, Manual
Compatible accessories
Dimmer
Rack mounting
Wall mounting
Stand
